Reverse lamp switch, location / task / function - GF27.19-P-5132G

TRANSMISSION 722.6 in MODEL 163, 170, 202, 208, 210

without touch shift

TRANSMISSION 722.6 in MODEL 129, 140

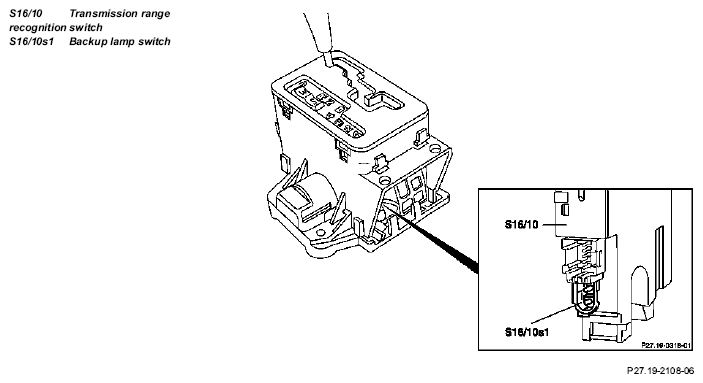

Fig 1: Identifying Transmission Range Recognition Switch And Backup Lamp Switch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Backup lamp switch, location	The reverse lamp switch (S16/10s1) is integrated in the transmission range recognition switch (S16/10).
	Backup lamp switch, task	To switch on the backup lamp.
	Backup lamp switch, function	When reverse gear is engaged the reversing lamp is actuated direct via the reverse lamp switch (S16/10s1).
