Vacuum Hose Diagram(S)

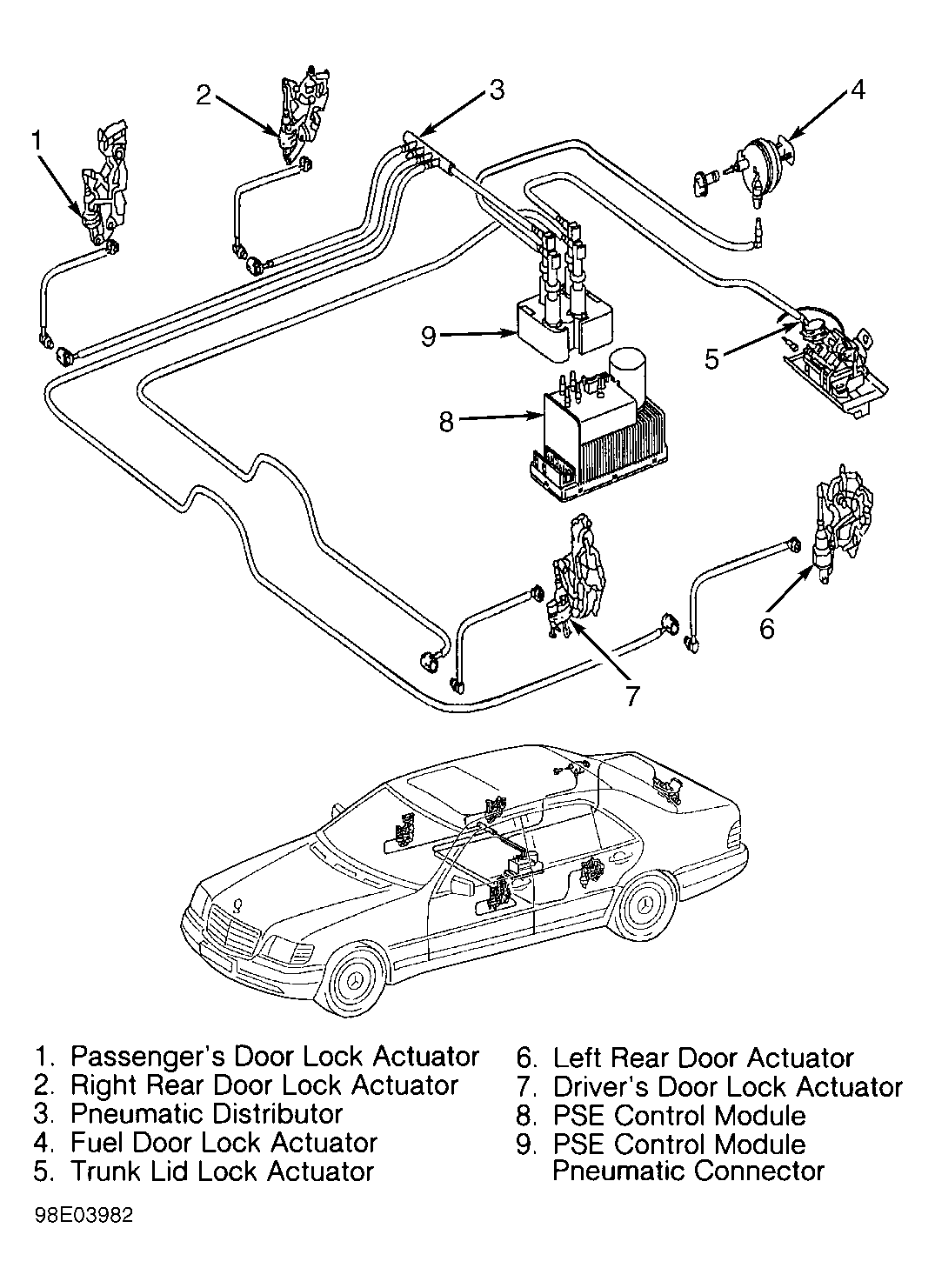

Fig 1: Central Locking System Vacuum Diagram (CL500, S320, S420 & S500)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

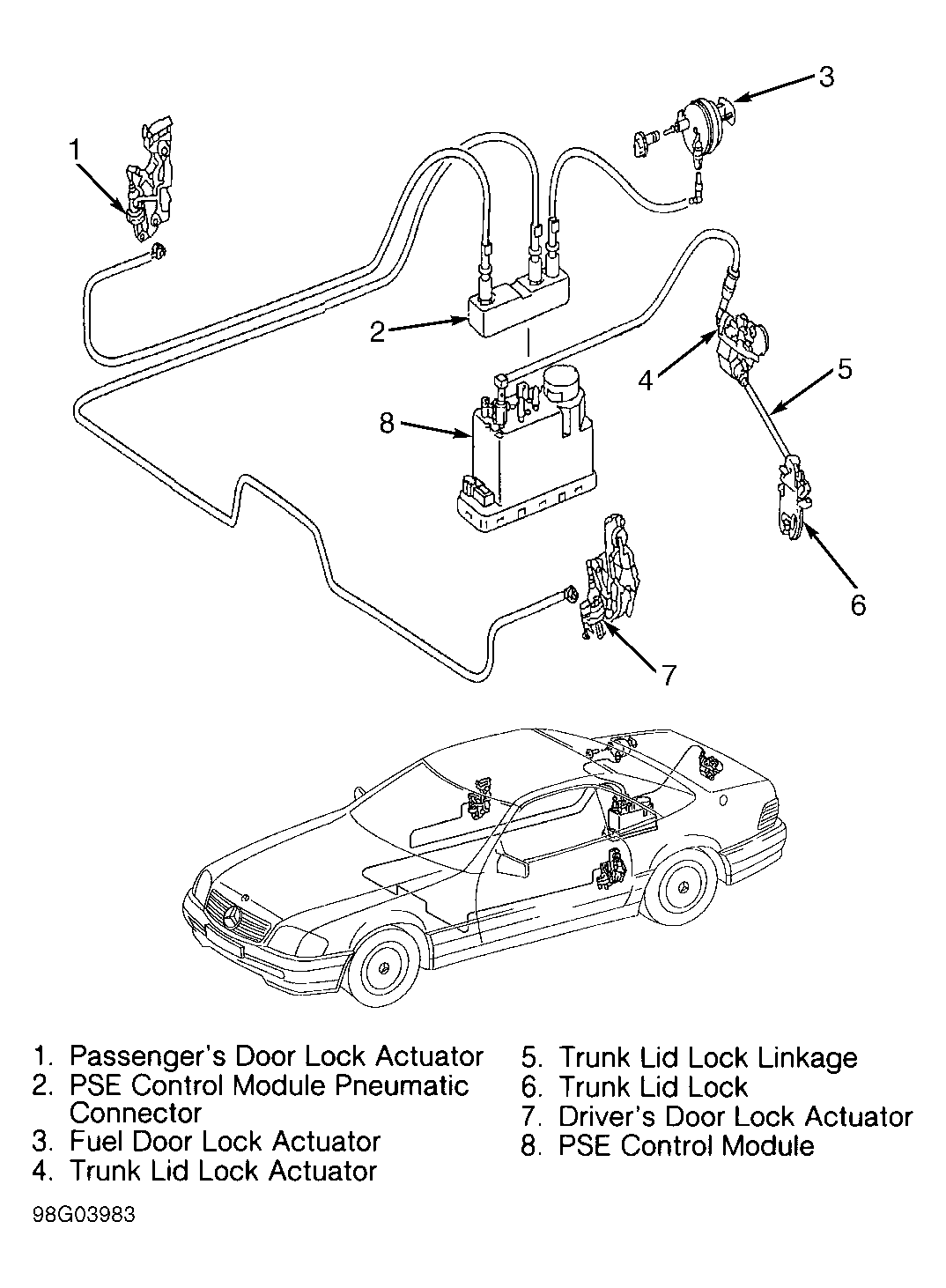

Fig 2: Central Locking System Vacuum Diagram (SL500)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

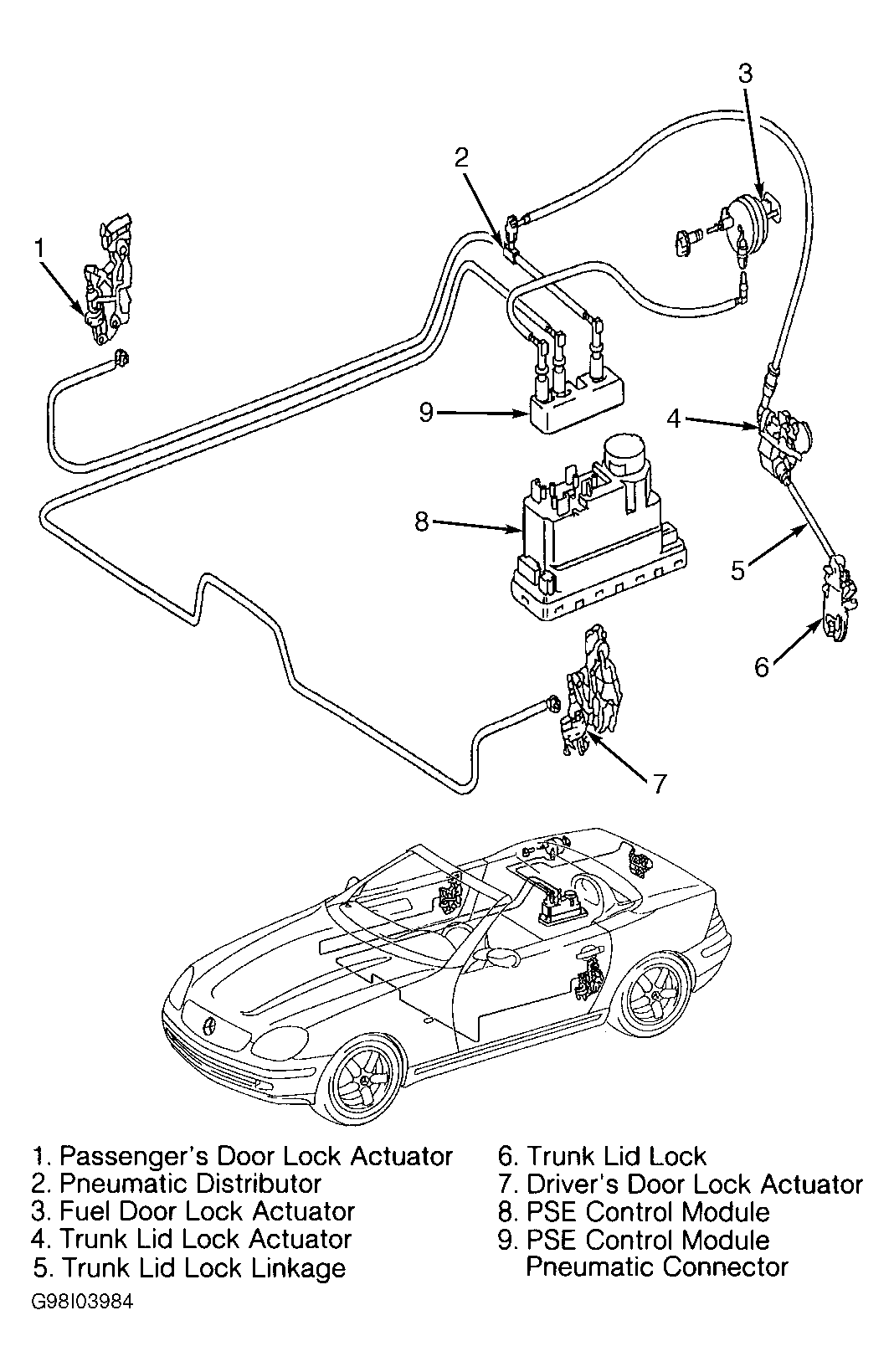

Fig 3: Central Locking System Vacuum Diagram (SLK230)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

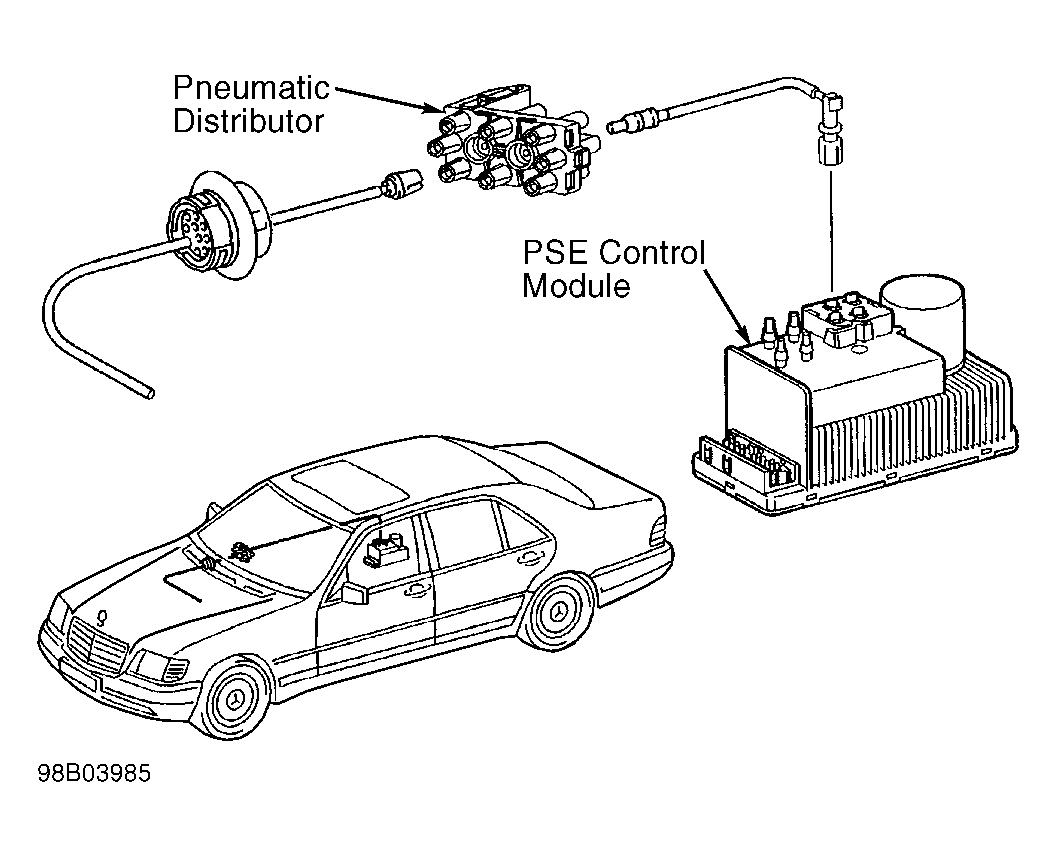

Fig 4: Manifold Vacuum Assist Vacuum Diagram (CL500, S320, S420 & S500)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

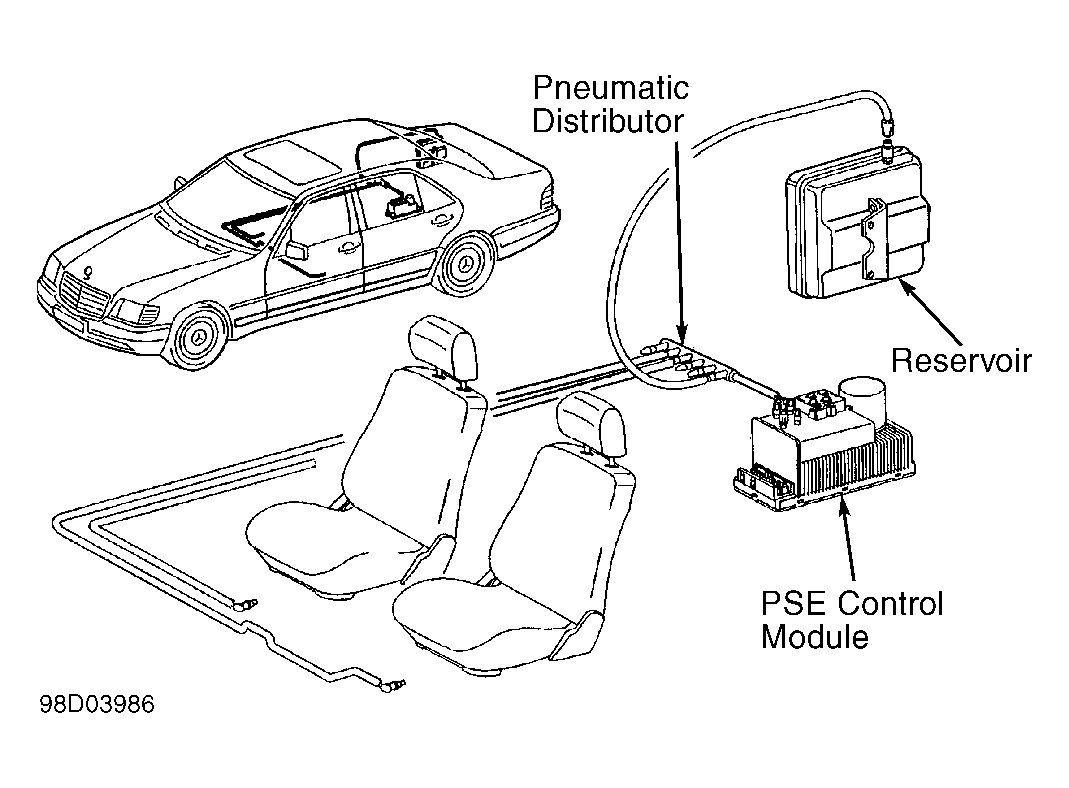

Fig 5: Orthopedic Seat Vacuum Diagram (CL500, S320, S420 & S500)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

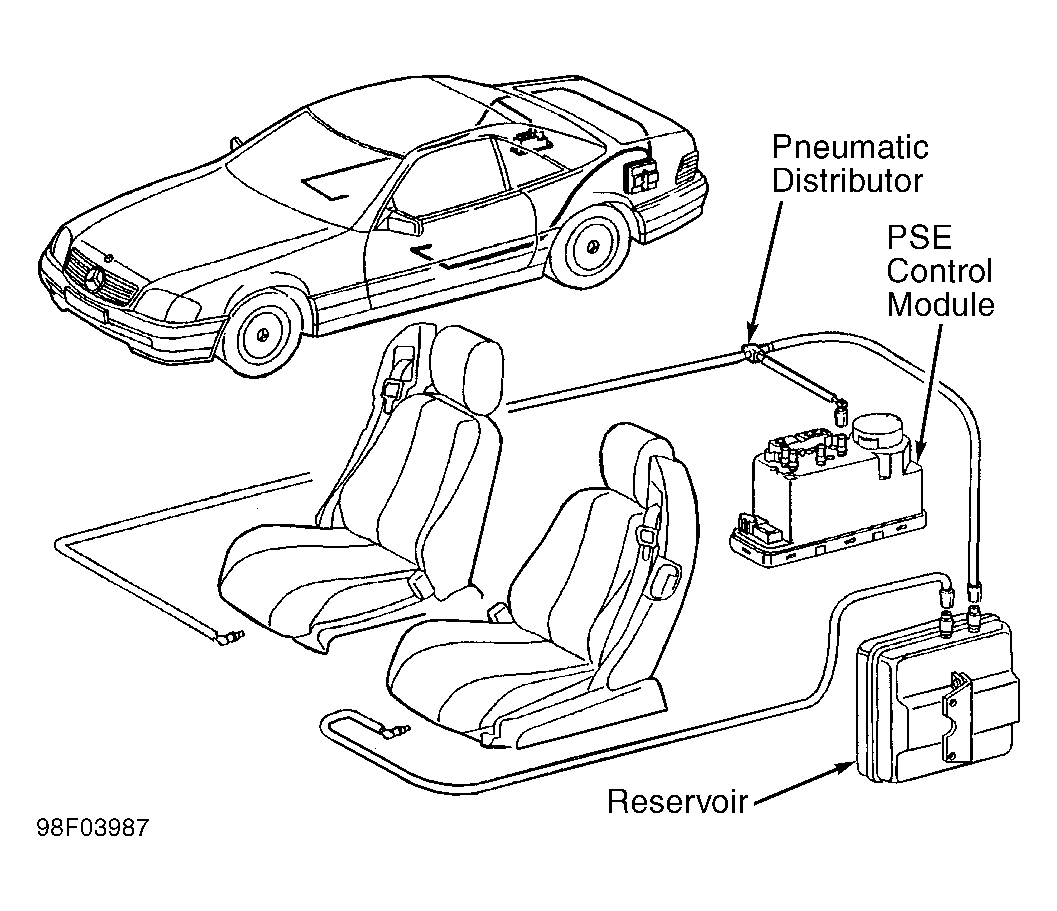

Fig 6: Orthopedic Seat Vacuum Diagram (SL500)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

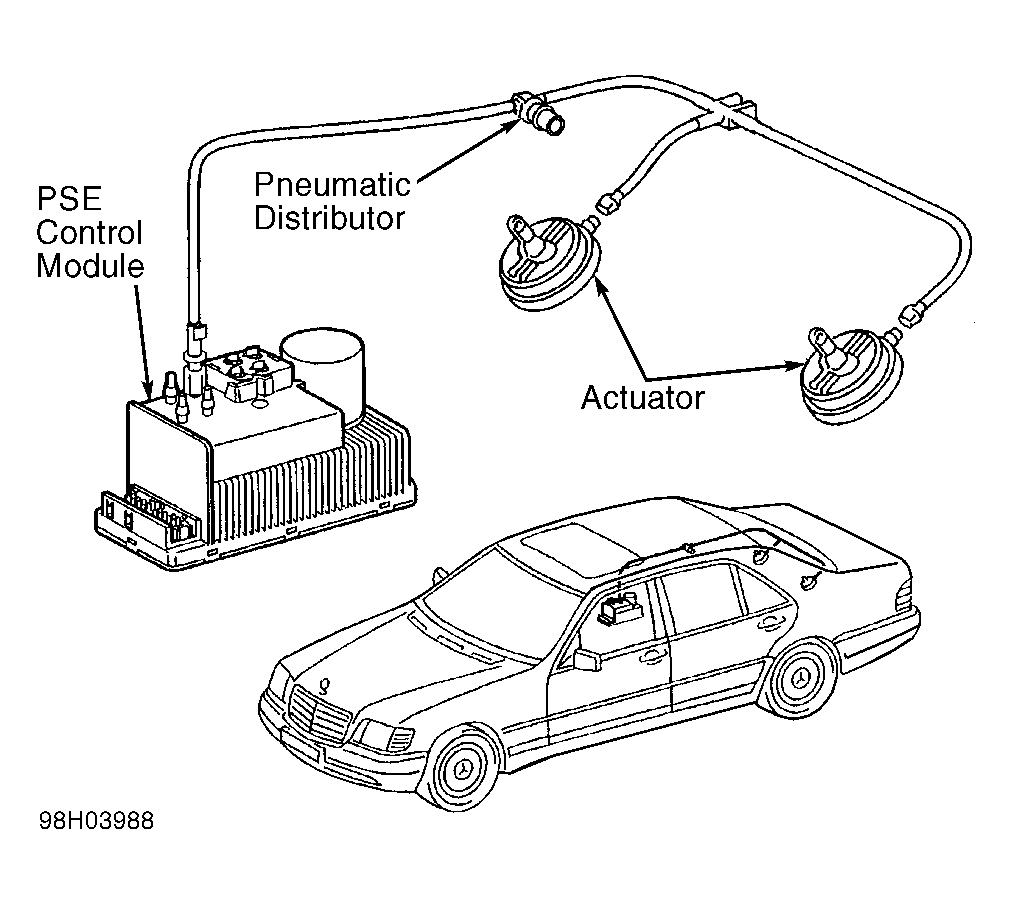

Fig 7: Retractable Rear Headrest Vacuum Diagram (CL500, S320, S420 & S500)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

Fig 8: Remote Trunk Release Vacuum Diagram (CL500, S320, S420 & S500)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA

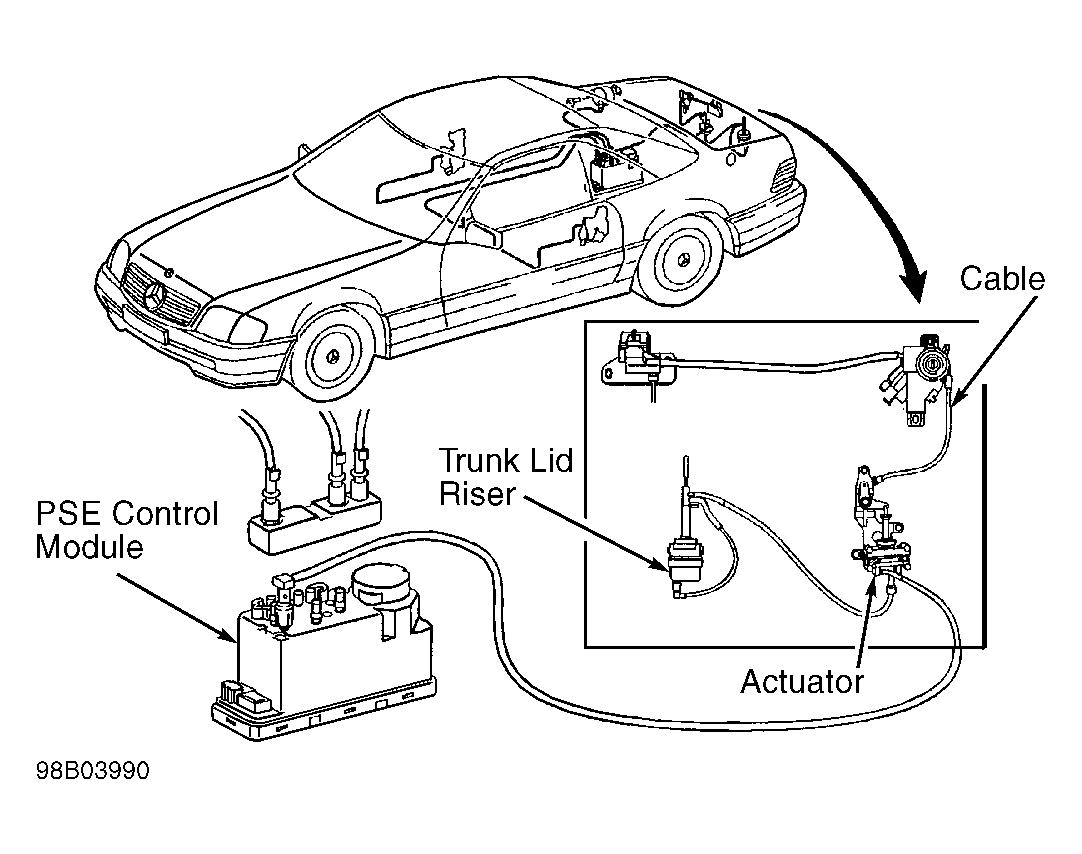

Fig 9: Remote Trunk Release Vacuum Diagram (SL500)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA
