Symptom Index

Use symptom index charts to determine which system tests to perform. See Fig 1 .

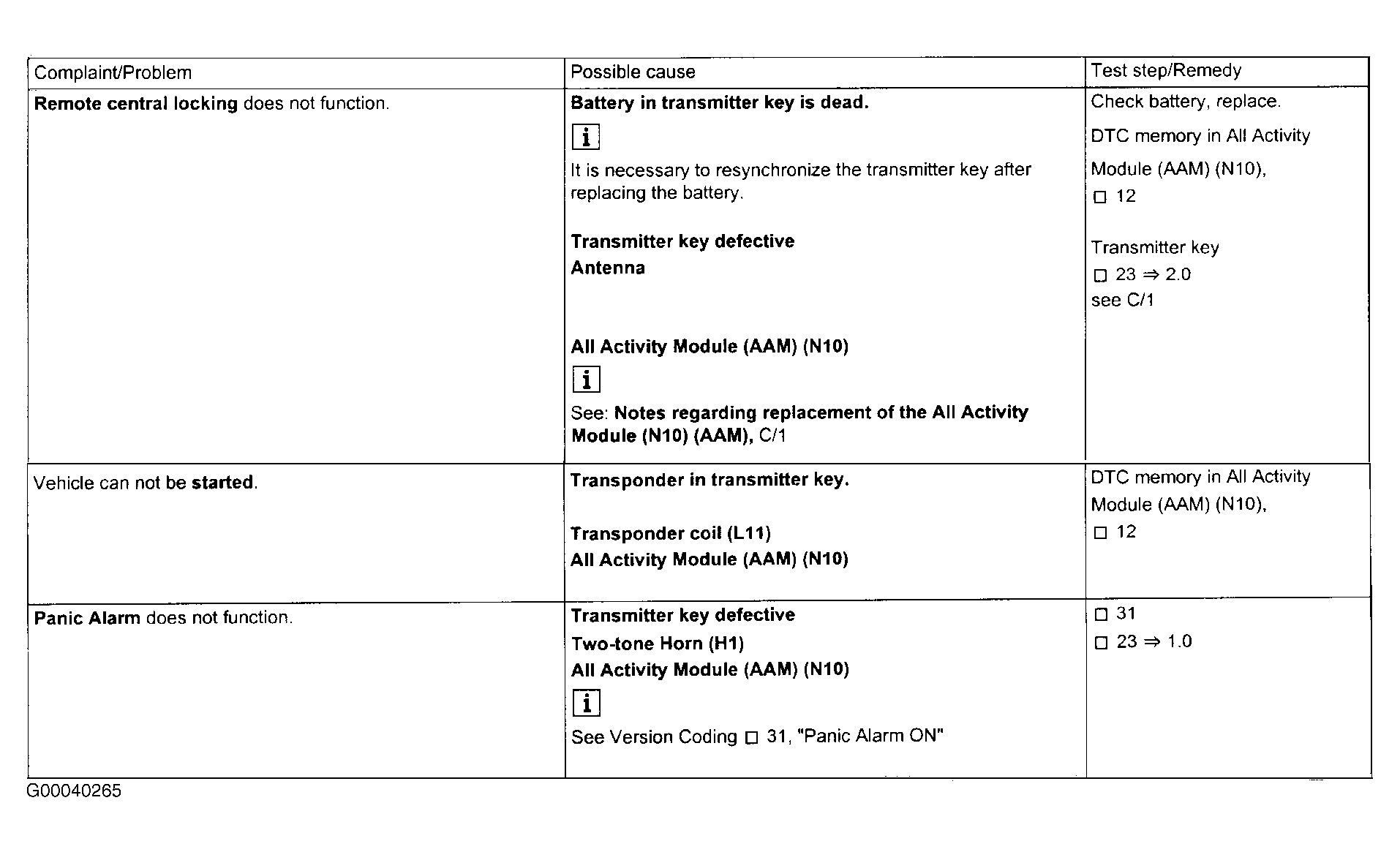

Fig 1: Symptom Index - Remote Control Locking
G00040265Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

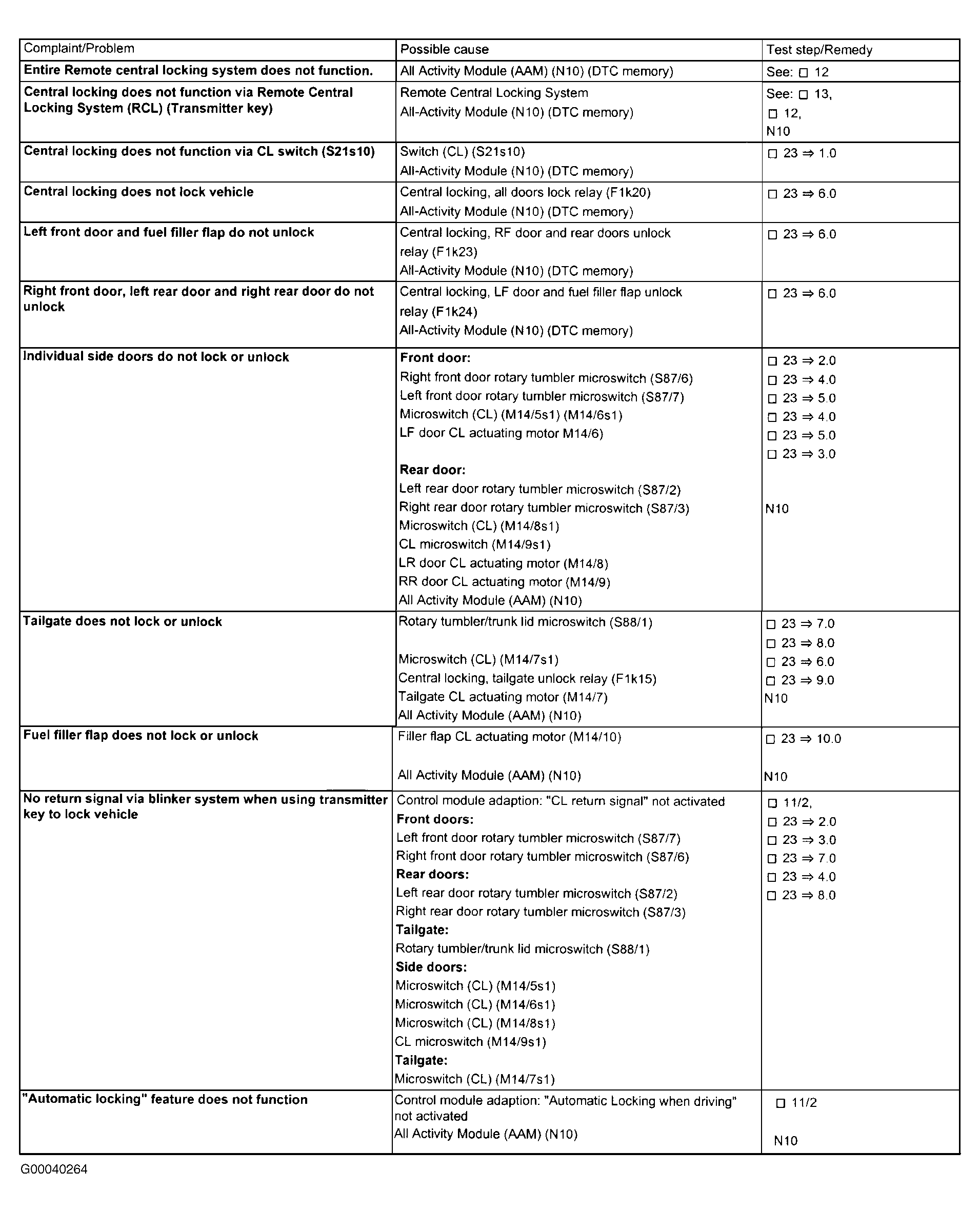

Fig 2: Symptom Index - Central Locking
G00040264Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
