Replacing power seat control module with memory - AR91.29-P-0002F

MODEL 210 with CODE (241) Memory circuit for left front power seat with CODE (242a) Memory circuit for right front power seat with CODE (275a) Memory package (driver's seat, steering column, mirror)

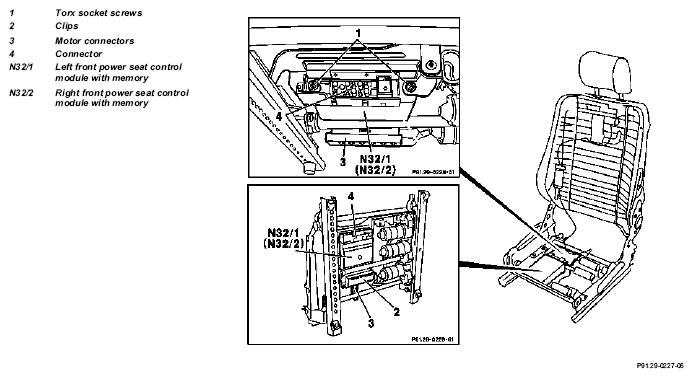

Fig 1: Identifying Power Seat Control Module With Memory

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Disconnect connector (4)
2	Remove front seat		AR91.10-P-1000F
3	Disconnect connector (3)	Open cover above male connector
4	Unscrew Torx socket screws (1)		Figure
5	Unclip control module (N32/1, N32/2) from seat base frame	Adjust basic position of head restraints	GF91.29-P-0002F
6	Reinstall in opposite order

Fig 2: Identifying Torx Socket Set (000 589 01 10 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
