Removing and installing pull cable for rear backrest release - AR91.12-P-1734A

MODEL 202.07/08/18, 210.2

Model 202

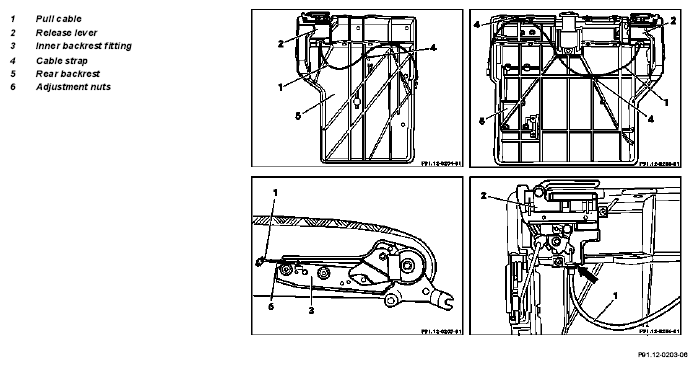

Fig 1: Identifying Pull Cable For Rear Backrest Release Components - Model 202

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Model 210

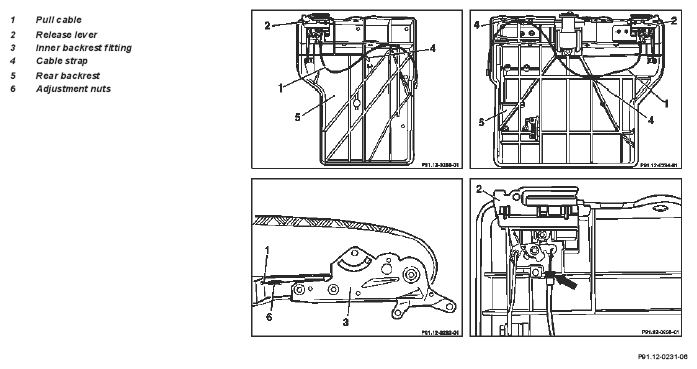

Fig 2: Identifying Pull Cable For Rear Backrest Release Components - Model 210

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Removal, installation
1	Remove rear seat and rear backrest	Model 202	AR91.12-P-1700EA
		Model 210	AR91.12-P-1700FA
2	Remove inner backrest fitting	Model 202	AR91.12-P-1733A
		Model 210	AR91.12-P-1733B
3	Remove cover on left rear backrest	Model 202	AR91.18-P-1874A
		Model 210 Disassemble rear backrest only to the point of "Remove foam rubber pad from backrest frame"	AR91.18-P-1874B
4	Remove cover on right rear backrest	Model 202	AR91.18-P-1878A
		Model 210 Disassemble rear backrest only to the point of "Remove foam rubber pad from backrest frame"	AR91.18-P-1878B
5	Unhook control cable (1) from release lever (2)
6	Pull control cable (1) out of guides (arrow)
7	Cut cable strap (4)	Installation:  Always use new cable strap
8	Remove pull cable (1) from rear backrest (5)
9	Reinstall in opposite order
