Supplemental restraint system (SRS), networking of components - GF91.60-P-0002-02A

Shown model 170

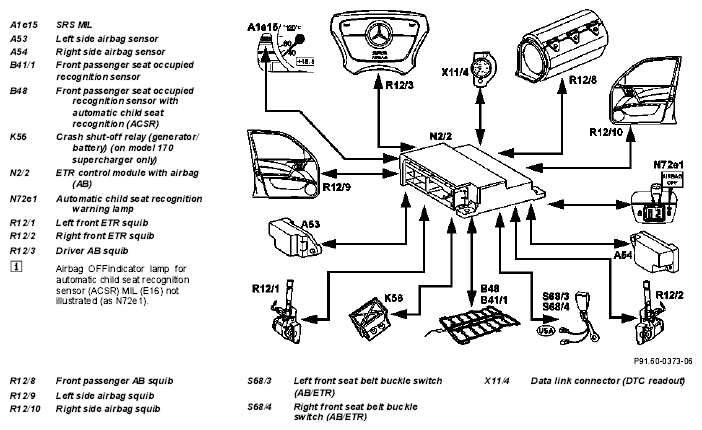

Fig 1: Identifying Supplemental Restraint System (SRS), Networking Of Components (Shown Model 170)
G04632720Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
