Supplemental restraint system (SRS), function - GF91.60-P-0002A

MODELS 129, 140, 170, 202, 208, 210 up to 1.6.98

MODEL 210 as of 1.6.98 up to 30.6.99 except CODE (290) Windowbag except CODE (293) Left and right rear sidebag except CODE (491) U.S. version except CODE (498) Japanese version

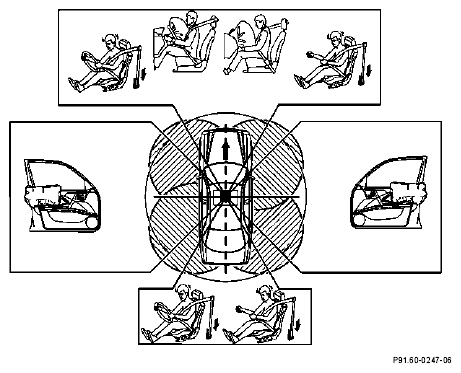

The emergency tensioning retractors (front left and right) and the airbags (depending on model and equipment) are triggered if a certain acceleration/deceleration is achieved within the specified angle of impact.

The risk of chest and head injuries is reduced in head-on collisions by the driver/front passenger airbag units  and the driver/front passenger emergency tensioning retractor  .

If a side impact occurs, the sidebag mainly protects the side of the chest and also the head because of its beneficial kinematics.

The driver-side/passenger-side airbag units are labeled SRS-Airbag. In vehicles with sidebags the SRS-Airbag lettering can be found on the door paneling.

SRS  : "S  upplemental- R  estraint-S  ystem", supplemental restraint system as supplemental restraint system.

Faults in the SRS system are indicated by the airbag indicator and warning lamp (A1e15)  (except model 140) on the instrument panel.

In vehicles with seat occupied recognition or automatic child seat recognition ( AKSE  ) the activation of the safety equipment at the passenger side is inhibited under certain conditions.

Seat occupied recognition:

If the front passenger seat is unoccupied, the activation of the front passenger airbag, the sidebag and the emergency tensioning retractor is inhibited.

Automatic child seat recognition (AKSE) :

If a special child seat is detected

(Child seat MB-Baby-Safe  ) on the front passenger seat the front passenger airbag is not  activated for safety reasons. The front passenger-side sidebag and emergency tensioning retractor remain active.

The operation of the system and the front passenger airbag cutout is (except model 140) indicated by the automatic child seat recognition airbag OFF indicator lamp (E16) or the automatic child seat recognition warning lamp (N72e1)  .

The automatic child seat recognition also includes seat occupied recognition functions.

	Supplemental restraint system (SRS), block diagram		GF91.60-P-0002-03A
	Supplemental Restraint System (SRS) Deployment Logic	Model 129	GF91.60-P-0002-08F
		Model 140	GF91.60-P-0002-08E
		Model 170	GF91.60-P-0002-08D
		Model 202	GF91.60-P-0002-08C
		Model 208	GF91.60-P-0002-08B
		Model 210	GF91.60-P-0002-08A
	Head-On Collision - Function		GF91.60-P-2006A
	Rear-End Collision - Function		GF91.60-P-2004A
	Side impact protection system function	Model 129 as of 1.9.95. Models 140, 170, 202 with code (292) front left and right sidebag. Model 210 up to 30.6.99 with code (292) front left and right sidebag.	GF91.60-P-2005A
	SRS airbag malfunction indicator lamp, location/task		GF91.60-P-4011A
	Airbag OFF indicator lamp, location/task	Models 129, 140, 202 as of 1.6.97, model 210 from 1.3.97 to 1.6.98 with code (491) USA version. Model 202 as of 1.12.97 except code (491) USA version.	GF91.60-P-4012A
