Seat ventilation blower regulator, location/task/design/function - GF91.30-P-3102S
MODEL 210 as of 1.7.99, 215, 220 with CODE (401a) Front luxury seat, incl. heated seat and seat ventilation
MODEL 220 with CODE (402a) Seat ventilation of rear seats

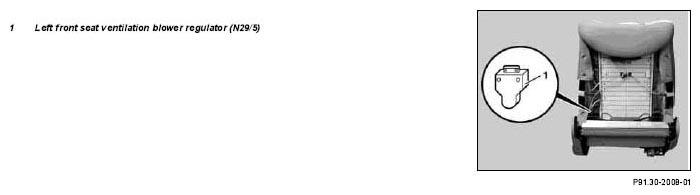

Location of component shown on the left front seat (MODEL 220):
| Seat ventilation blower regulator, location | The blower regulators for left front seat ventilation (N29/5), right front seat ventilation (N29/6), left rear seat ventilation (N29/3) and right rear seat ventilation (N29/4) are located in the backrest of the respective seat. | ||
| Seat ventilation blower regulator, purpose | The blower regulators for front seat ventilation on left (N29/5)/right (N29/6), as well as for MODEL 220 the blower regulator for rear seat ventilation on left (N29/3)/right (N29/4) boost the actuation voltage from the control module for the motors of the seat ventilation. | ||
| Seat ventilation blower regulator, design | The blower regulators are discrete elements, which are connected between the control module and the motors. | ||
| Seat ventilation blower regulator, function | The blower regulators are designed as non- overloading regulators. |
