Heated seats (HS), function - GF91.30-P-0003F

MODEL 210 with CODE (872) Left and right electric rear heated seats with CODE (873) Left and right front heated seats

MODEL 202 as of 01.09.95 with CODE (873) Left and right front heated seats

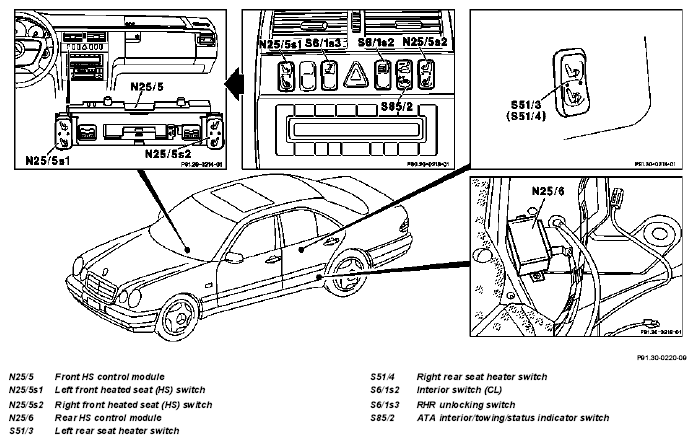

Fig 1: Identifying Heated Seats (HS), Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1	Function of front heated seats		GF91.30-P-0004F
2	Function of rear heated seats		GF91.30-P-0005F
