Function of front heated seats - GF91.30-P-0004F
MODEL 210, 202 as of 1.9.95 with CODE (873) Electrically heated left and right front seats

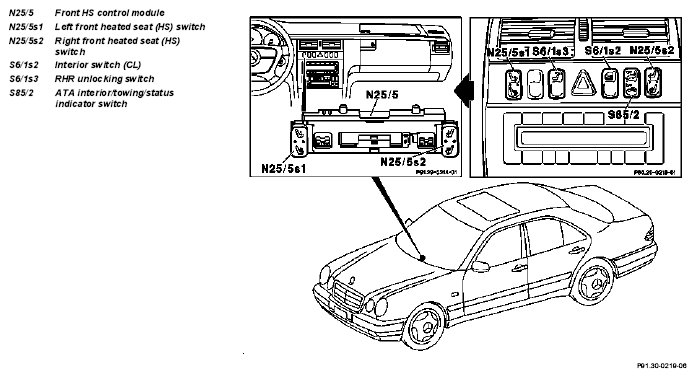

Seated heats are switched on with left or right front heated seat (HS) switch (N25/5s1, N25/5s2). After actuation this switch (button) returns to rest position.
Step I or II is switched on by pressing appropriate symbol once. At the same time, in step I one LED illuminates and in step II both LEDs illuminate. By pressing the same symbol twice, heated seats are switched off.
Switch-on time of both heater steps is limited by front HS control module (N25/5). Step II is automatically switched to step I after approx. 5 min. After approx. 30±5 minutes, heated seats switch off automatically.
When switching off ignition (position 0) automatic heater process is interrupted. When switching on ignition again left or right front heated seat (HS) switch (N25/5s1, N25/5s2) must be re-actuated.
Heater elements (seat backrest/cushion) are switched in parallel. In step I actuation of heater element is from front HS control module (N25/5). Switch-on time is approx. 30%.
If battery voltage is below 11 V, heated seats are automatically shutoff through front HS control module (N25/5) and LEDs in switches (N25/5s1, N25/5s2) flash.
