Front seat ventilation motors, location/purpose/design/function - GF91.30-P-3100A

MODEL 210 as of 1.7.99 with CODE (401a) Front seat ventilation

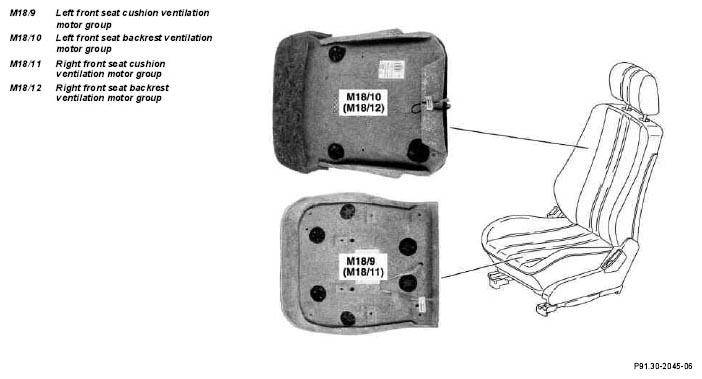

Fig 1: Identifying Front Seat Ventilation Motors

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Front seat ventilation motors, purpose	Active ventilation of the seat cushion and backrest
	Front seat ventilation motors, design	The left front seat cushion ventilation motor group (M18/9)/right front seat cushion ventilation motor group (M18/11)  have 6 fan motors each. The left front seat backrest ventilation motor group (M18/10)/right front seat backrest ventilation motor group (M18/12)  have 3 fan motors each.
	Front seat ventilation motors, function		GF91.30-P-3100-02A
