Front seat adjustment switch group, location/design/function - GF91.29-P-2100E

MODEL 210 as of 1.7.99 except CODE (275a) Memory package (driver's seat, steering column, rearview mirrors)

The seat adjustment switches are located in the seat cushion frame on the driver and passenger seat (outside).

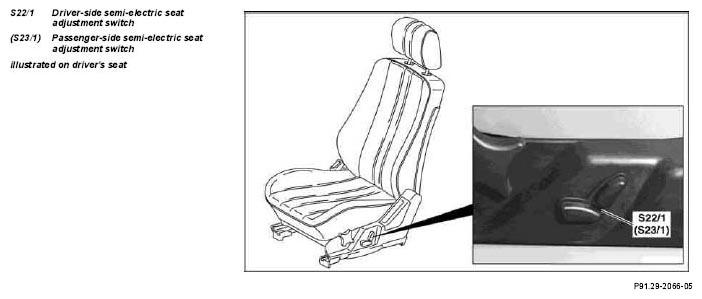

Fig 1: Identifying Driver-Side And Passenger-Side Semi-Electric Seat Adjustment Switch

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Front seat adjustment switch group, design	Two switches are integrated into the switch group.
	Front seat adjustment switch group, function	The switches integrated into the switch group are pole reversal switches.
