Buckle switch, location/task - GF91.60-P-4013A
MODELS 129, 140, 202 up to 31.5.93
MODELS 129, 140, 170, 202, 208, 210, 215, 220 with CODE (491) U.S. version
Location

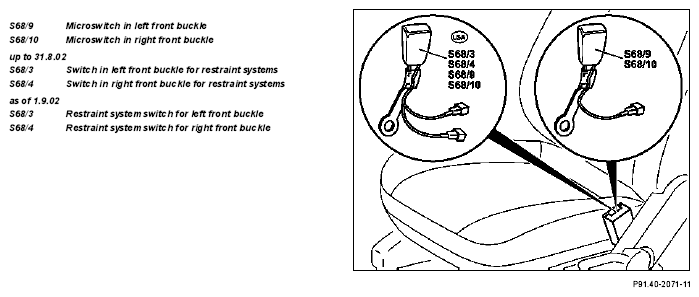

| Seat belt buckle switch location | The left front seat belt buckle restraint systems switch (S68/3) and right front seat belt buckle restraint systems switch (S68/4) are located in the respective buckles. | ||
| Seat belt buckle switch task | The left front seat belt buckle restraint systems switch (S68/3) and front right (S68/4) monitor the wearing of the three-point seat belt on the driver's and front passenger's seat. The airbag unit is ignited if the seat belt is not fastened during the initial triggering threshold. |
