Complete interlinkage, interlinkage of components - GF00.19-P-0001-02A

Model 202 as of 1.6.97, 208, 210 (except 210.081/281) as of 1.3.97, 210.081, 210.281

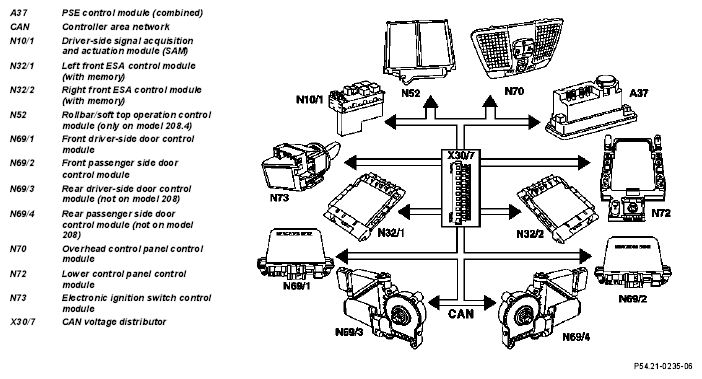

Fig 1: Identifying Complete Interlinkage Of Components
G04632156Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
