Fuel Injection System Test (Steps 27.0 & 28.0)

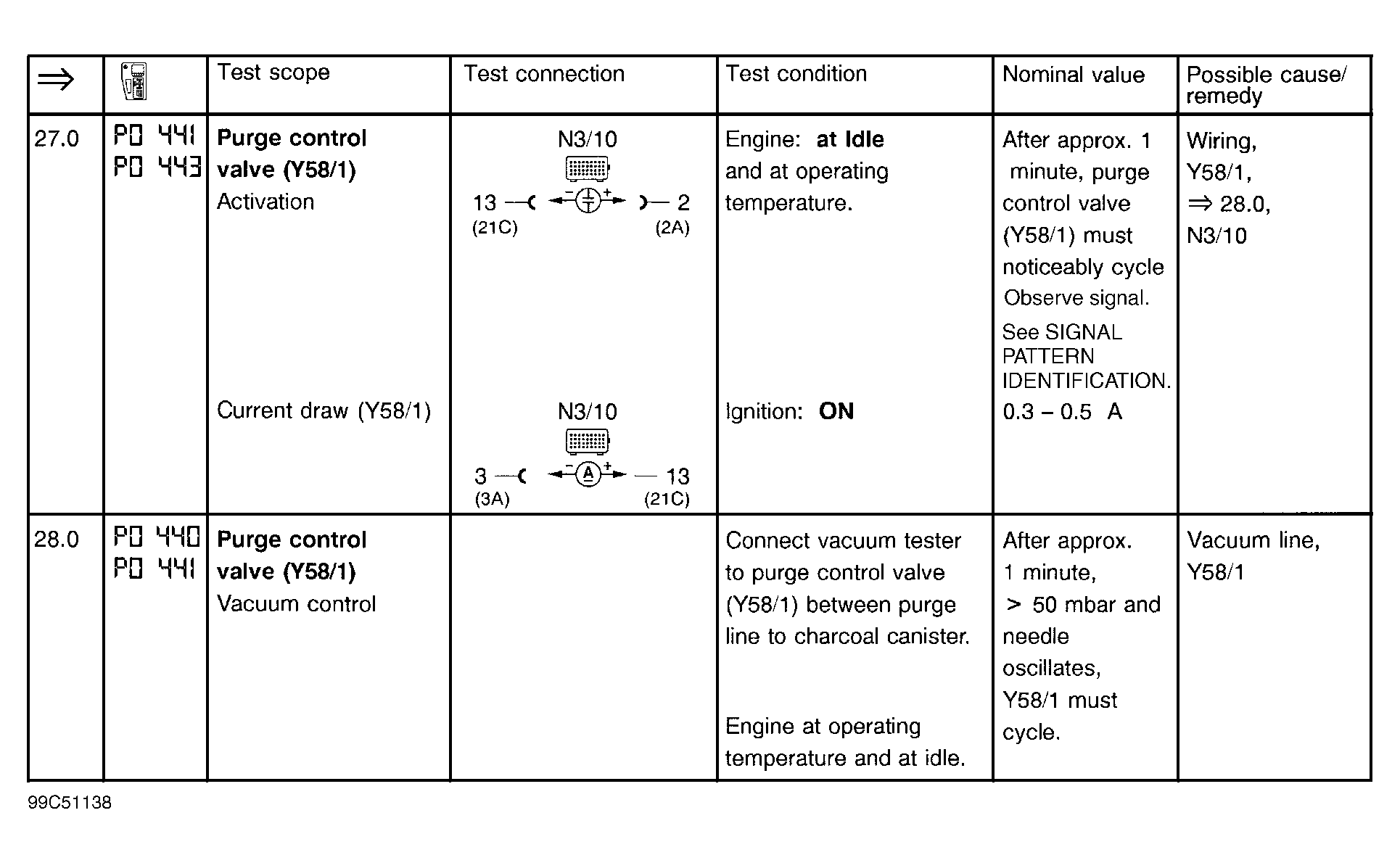

Fig 1: Fuel Injection System Test (Steps 27.0 & 28.0)

G99C51138

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
