Fuel Injection System Test (Steps 26.0-27.1)

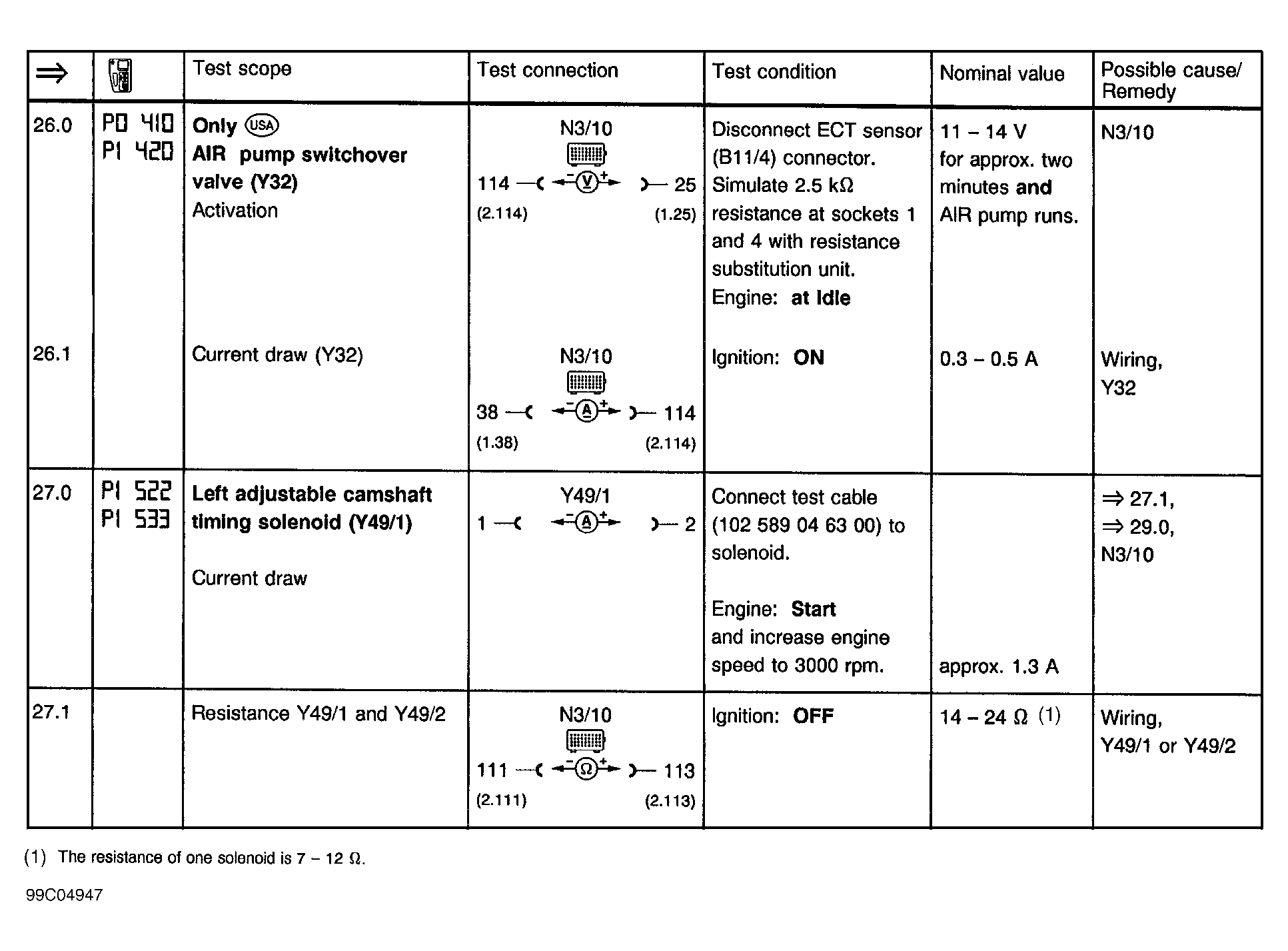

Fig 1: Fuel Injection System Test (Steps 26.0-27.1)

G99C04947

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
