Fuel Injection System Test (Steps 15.0-16.1)

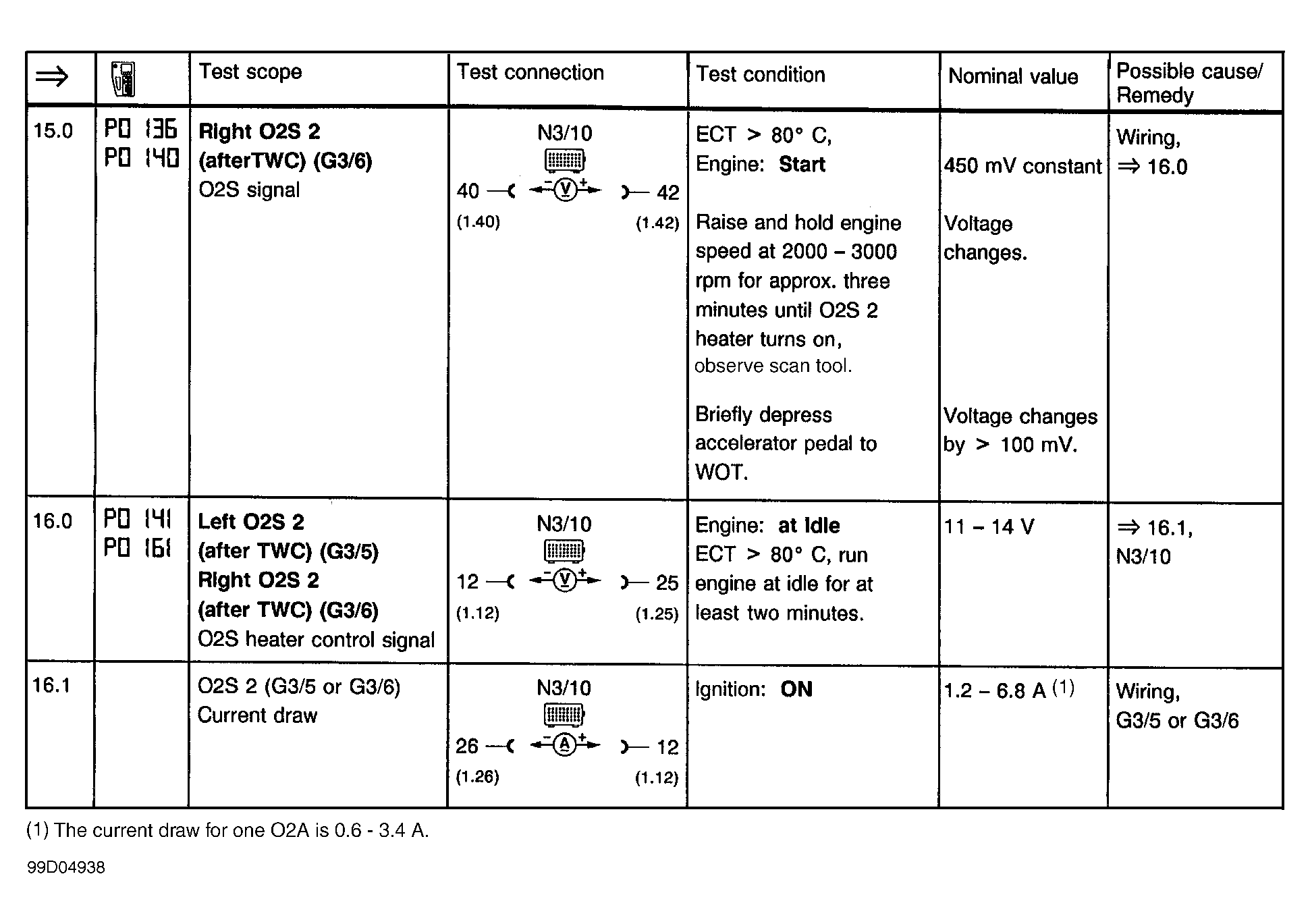

Fig 1: Fuel Injection System Test (Steps 15.0-16.1)

G99D04938

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
