Component Locations

COMPONENT LOCATIONS

Component Location
Adjustment Motors (1)
Proximity Control Module (2) Appropriate Door Pillar
Memory Switch Appropriate Door Panel
Power Seat Control Module Under Appropriate Seat
Power Seat Switch Appropriate Door Panel
Safety Package Control Module Under Appropriate Seat
Seat-Back Latch Switch (1)
(1) See Fig 1 .
(2) See Fig 2 .

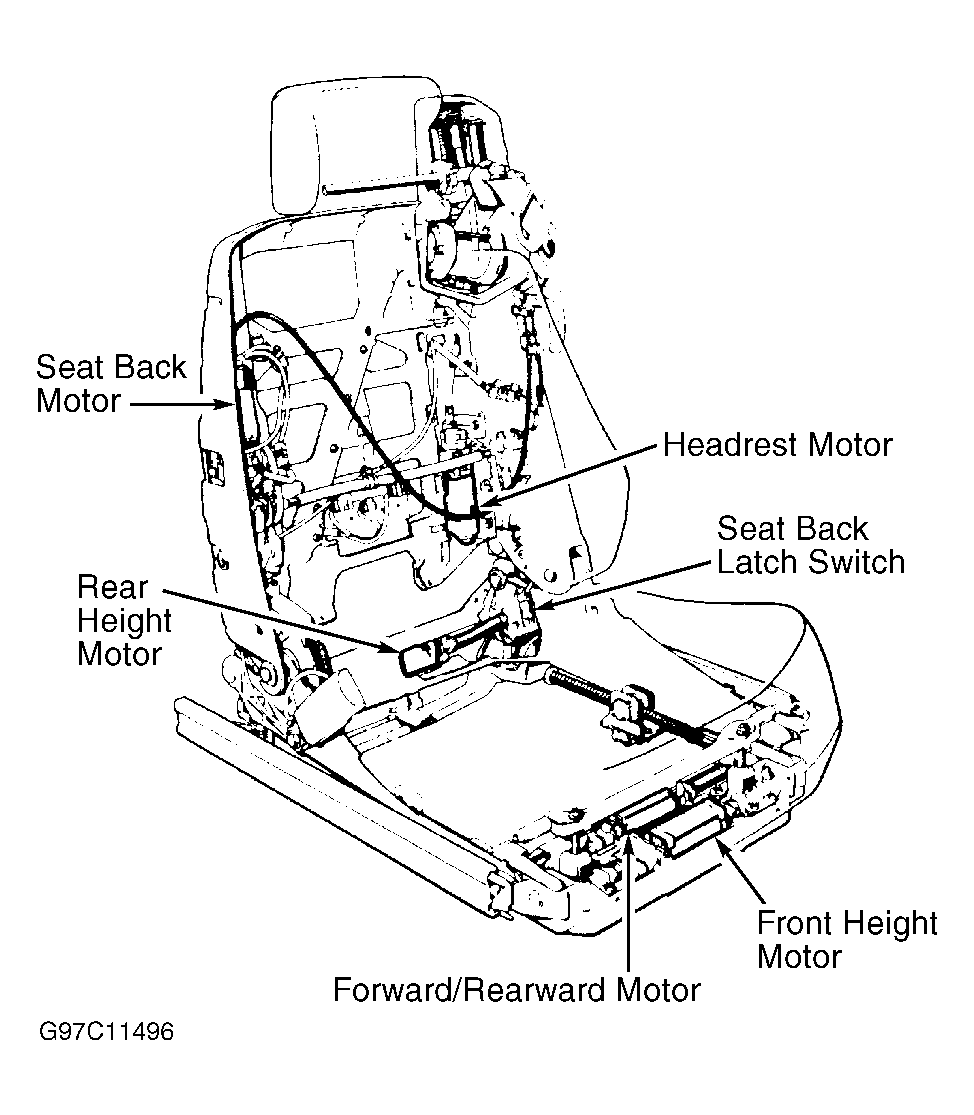

Fig 1: Locating Power Seat Motors & Seat-Back Latch Switch
G97C11496Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

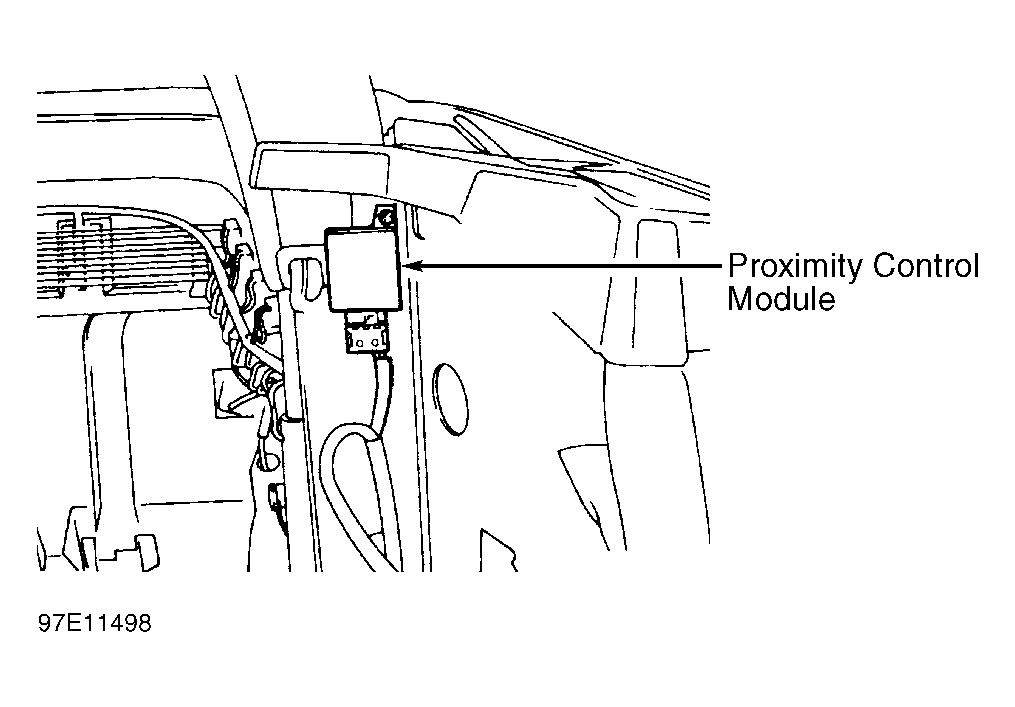

Fig 2: Locating Proximity Control Module
G97E11498Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
