Electrical System Tests - Section 23 (Steps 10.0-11.1)

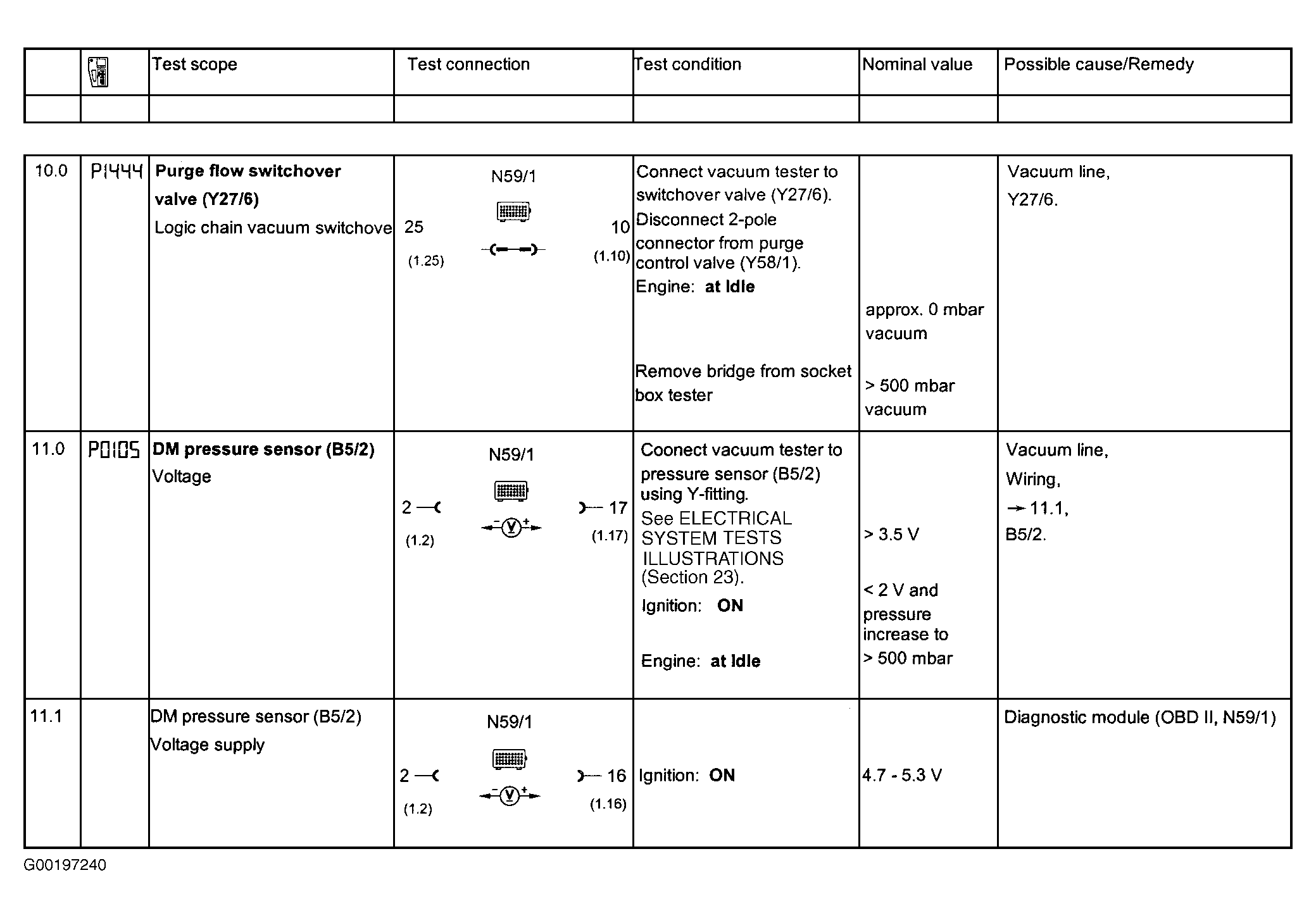

Fig 1: Electrical System Tests - Section 23 (Steps 10.0-11.1)

G00197240

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
