Camshaft Position Sensor: Removal

Remove valve cover. Remove engine compartment panel (if necessary). Remove camshaft position sensor, sealing ring and shim. See Fig 1 .

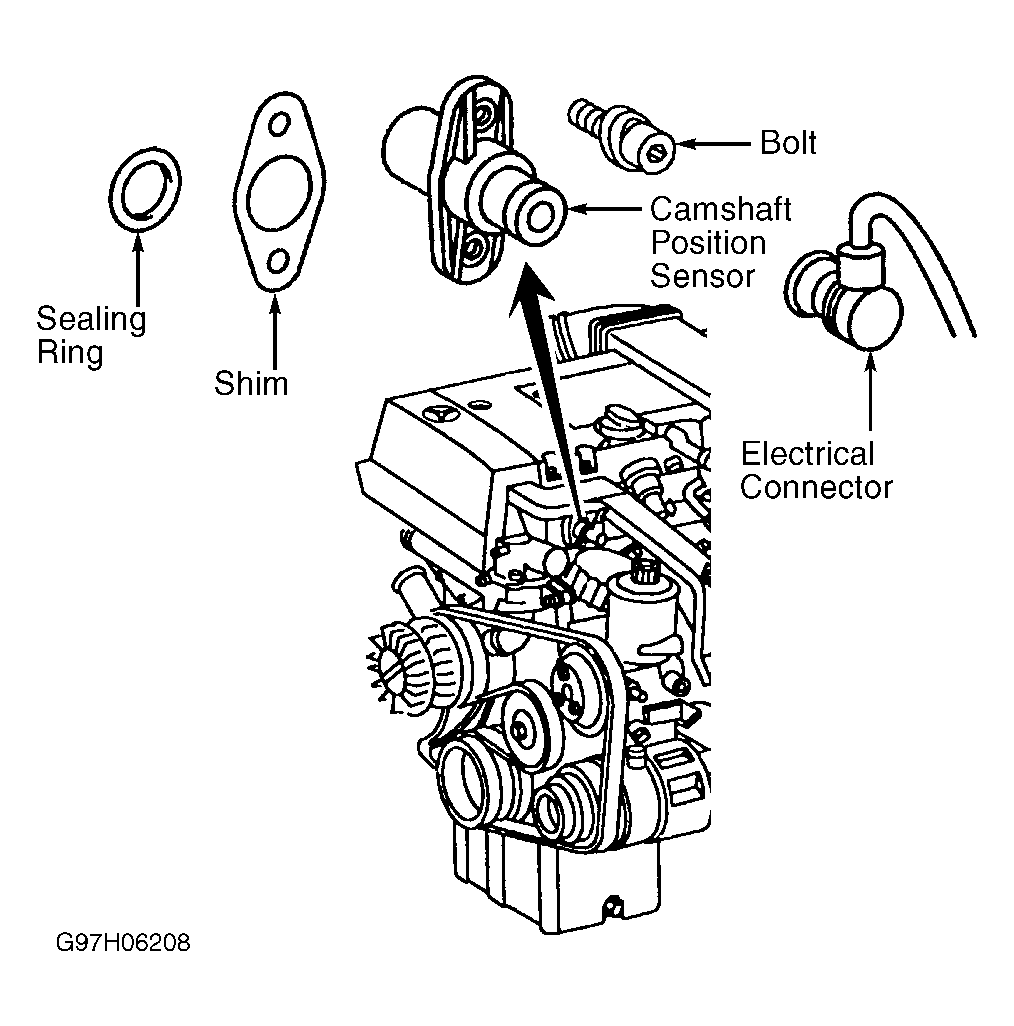

Fig 1: Removing & Installing Camshaft Position Sensor (Similar)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

CAUTION: If installing a new sensor, failure to adjust clearance may result in a damaged camshaft position sensor.
