Disabling System

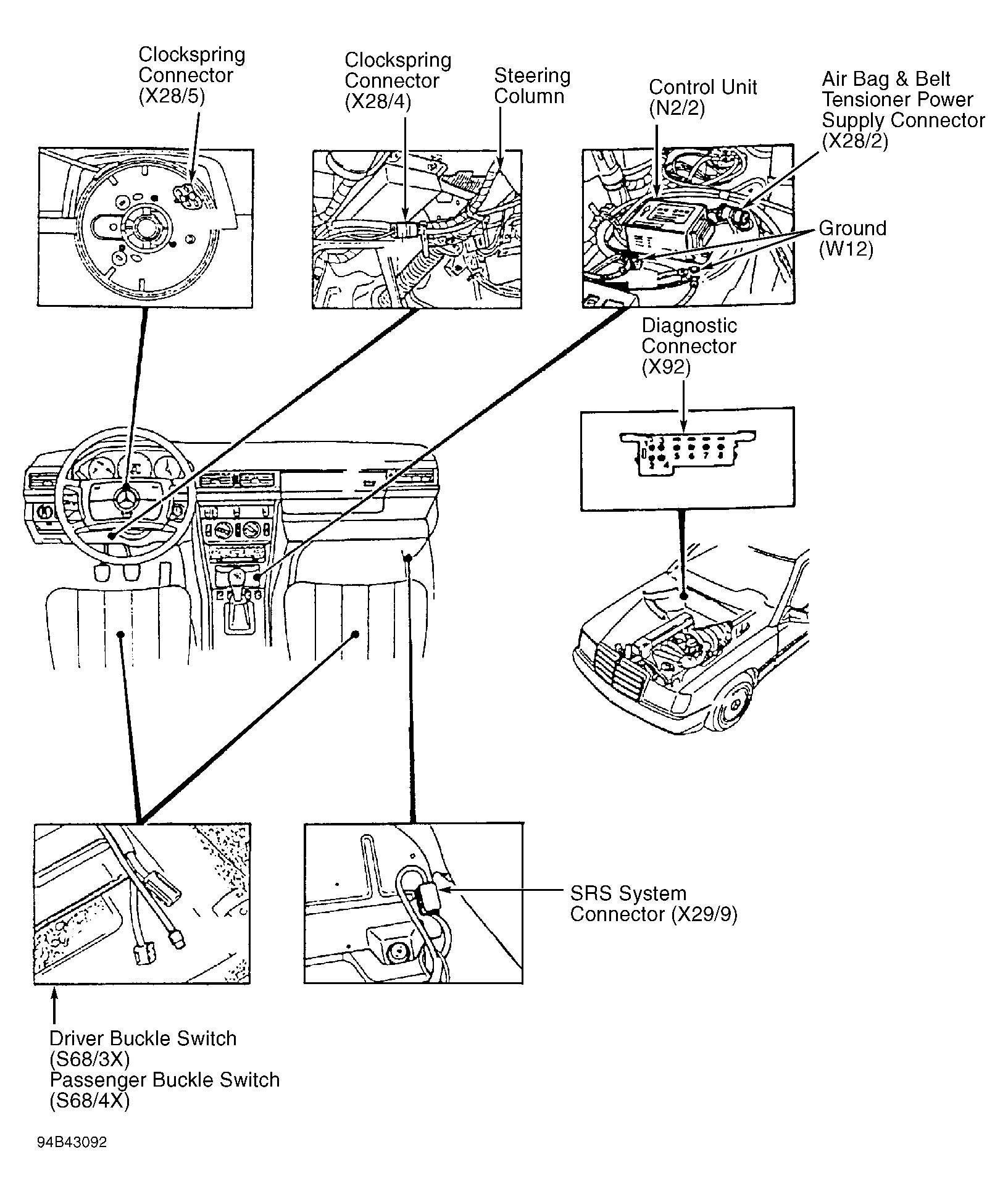

Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS  . Turn ignition off. Disconnect and shield negative battery cable. Remove passenger foot mat. Remove passenger footrest. Disconnect SRS system connector (X29/9 ) located at passenger footwell area. See Figure . System is now disabled.
