Fuel Pump Tests (Section 34)
Fuel Pump Tests (Section 34)

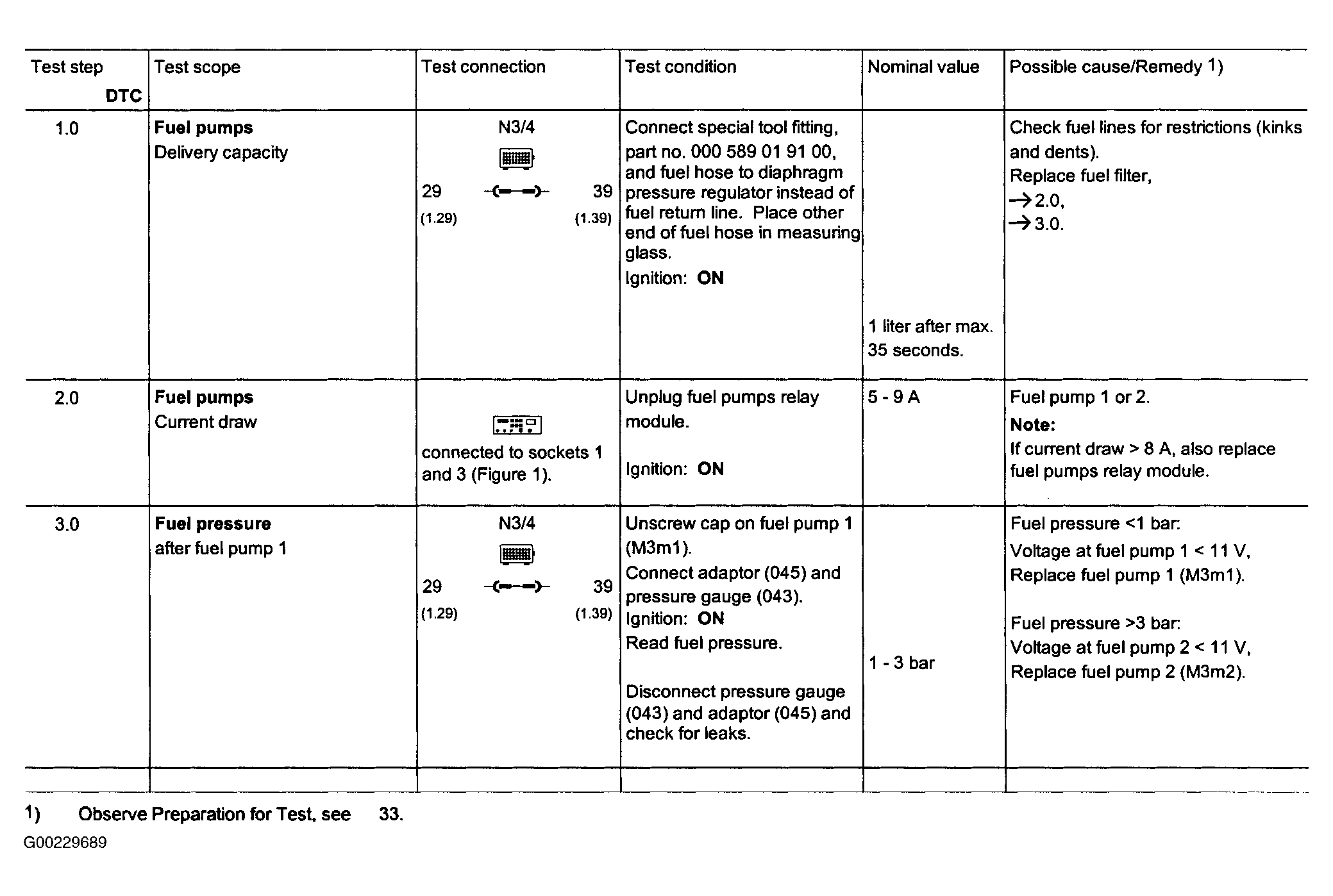

Fig 1: Fuel Pump Test - Section 34 (Steps 1.0-3.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
