Electrical System Tests - Section 23 (Steps 12.0-12.2)

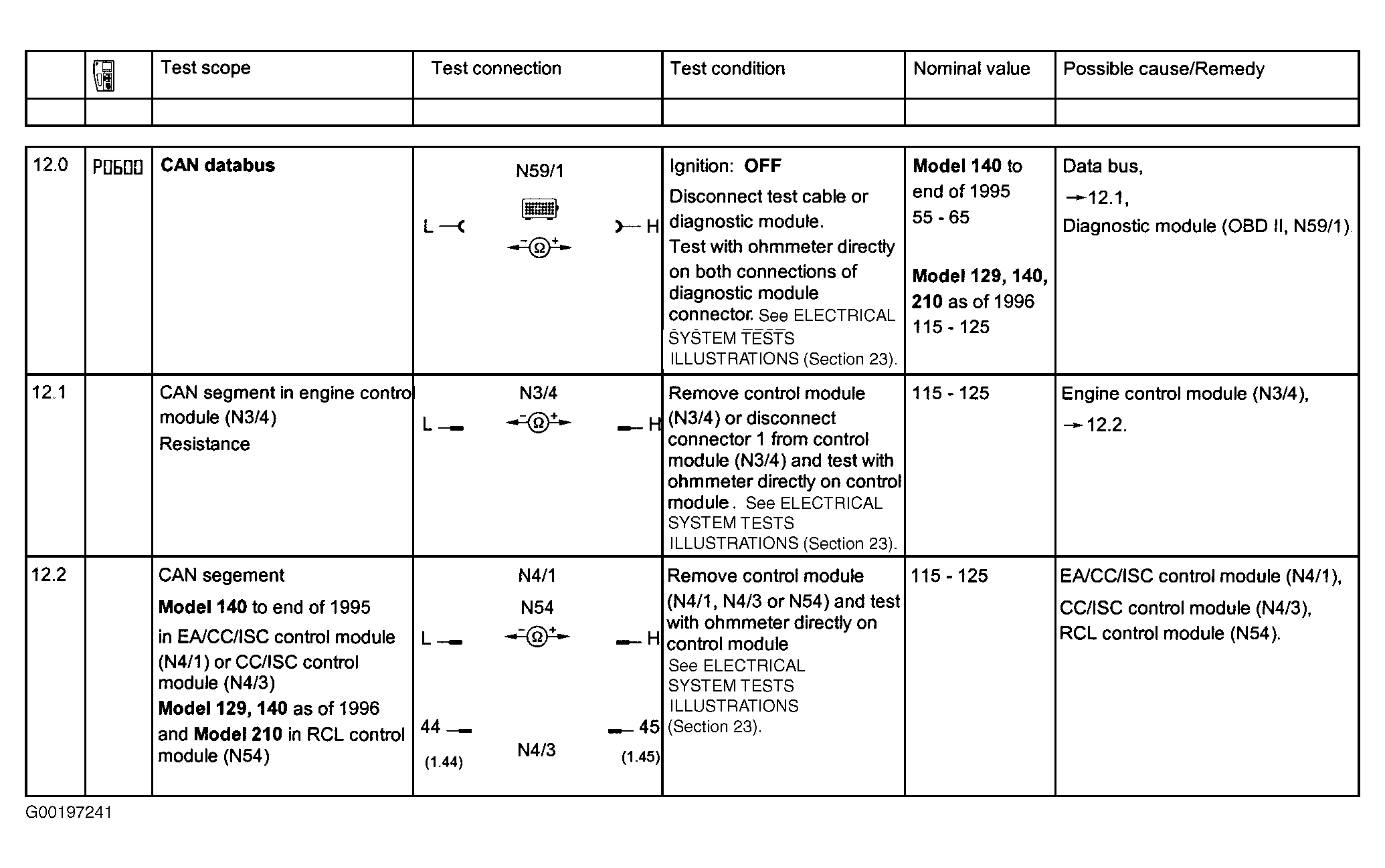

Fig 1: Electrical System Tests - Section 23 (Steps 12.0-12.2)

G00197241

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
