Electronic Acceleration System Tests 11.1

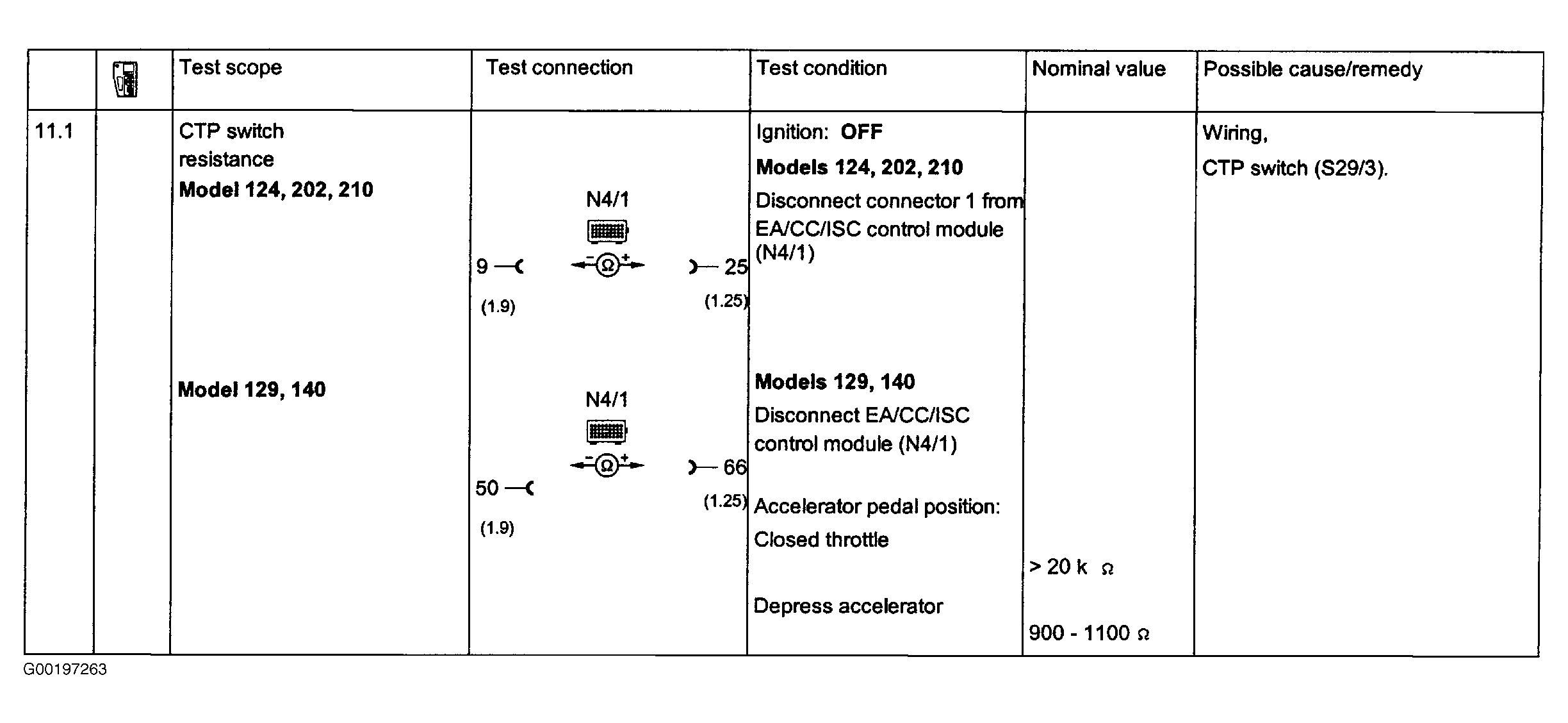

Fig 1: Electronic Acceleration System Tests (Step 11.1)

G00197263

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
