Fuel Injection System Test (Steps 17.0-18.0)

WARNING: This page is about a different car, the 1998 Mercedes-Benz SL500, 1997 Mercedes-Benz SL500, 1997 Mercedes-Benz E420, and 1996 Mercedes-Benz SL500. However, it is still accessible from the selected car via links, so may be relevant.

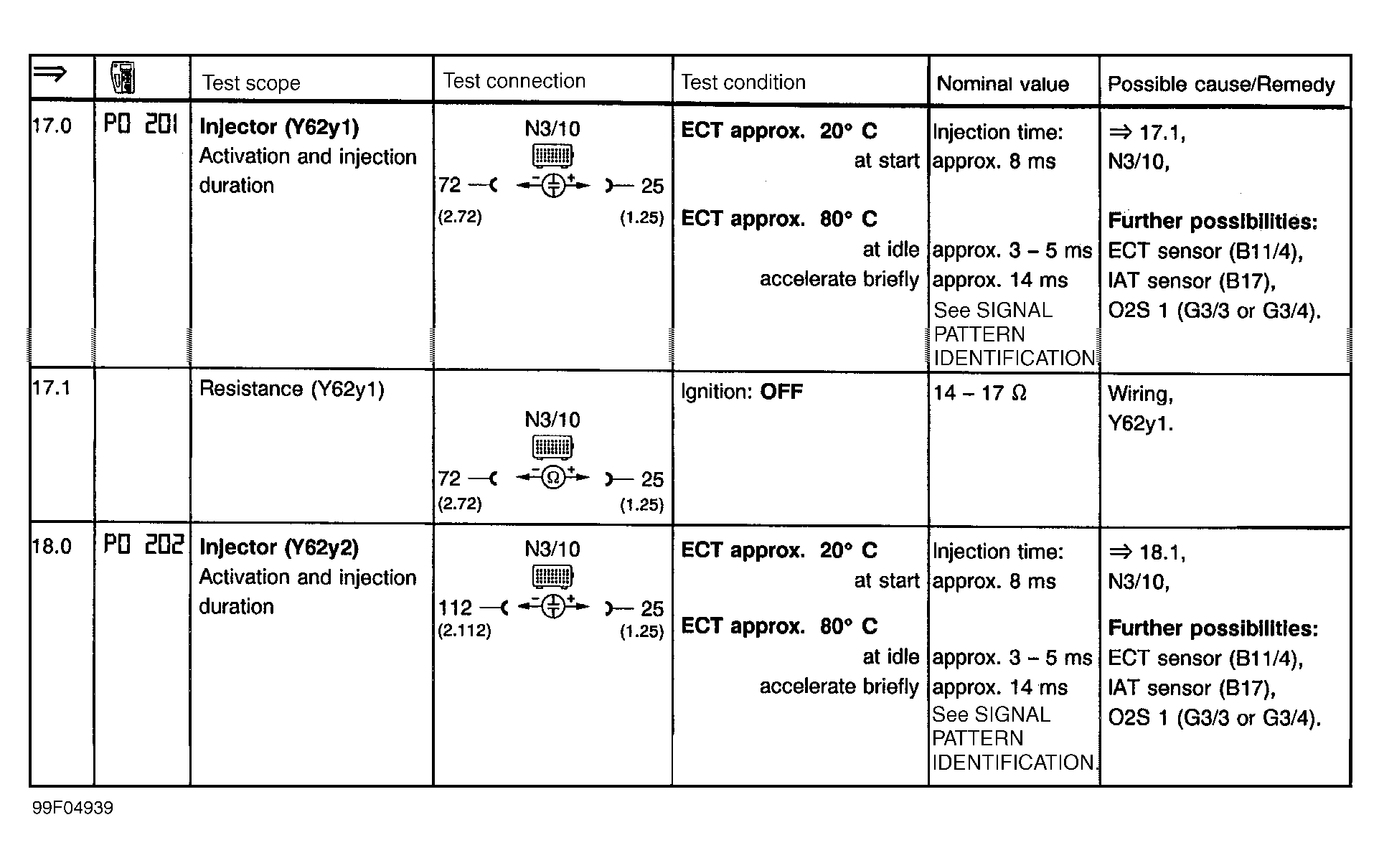

Fig 1: Fuel Injection System Test (Steps 17.0-18.0)
G99F04939Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
