Engine Controls - Tests W/Codes - LH-SFI System
>>
System Tests
>>
Fuel Pump Test (Section 34)
Fuel Pump Test (Section 34)

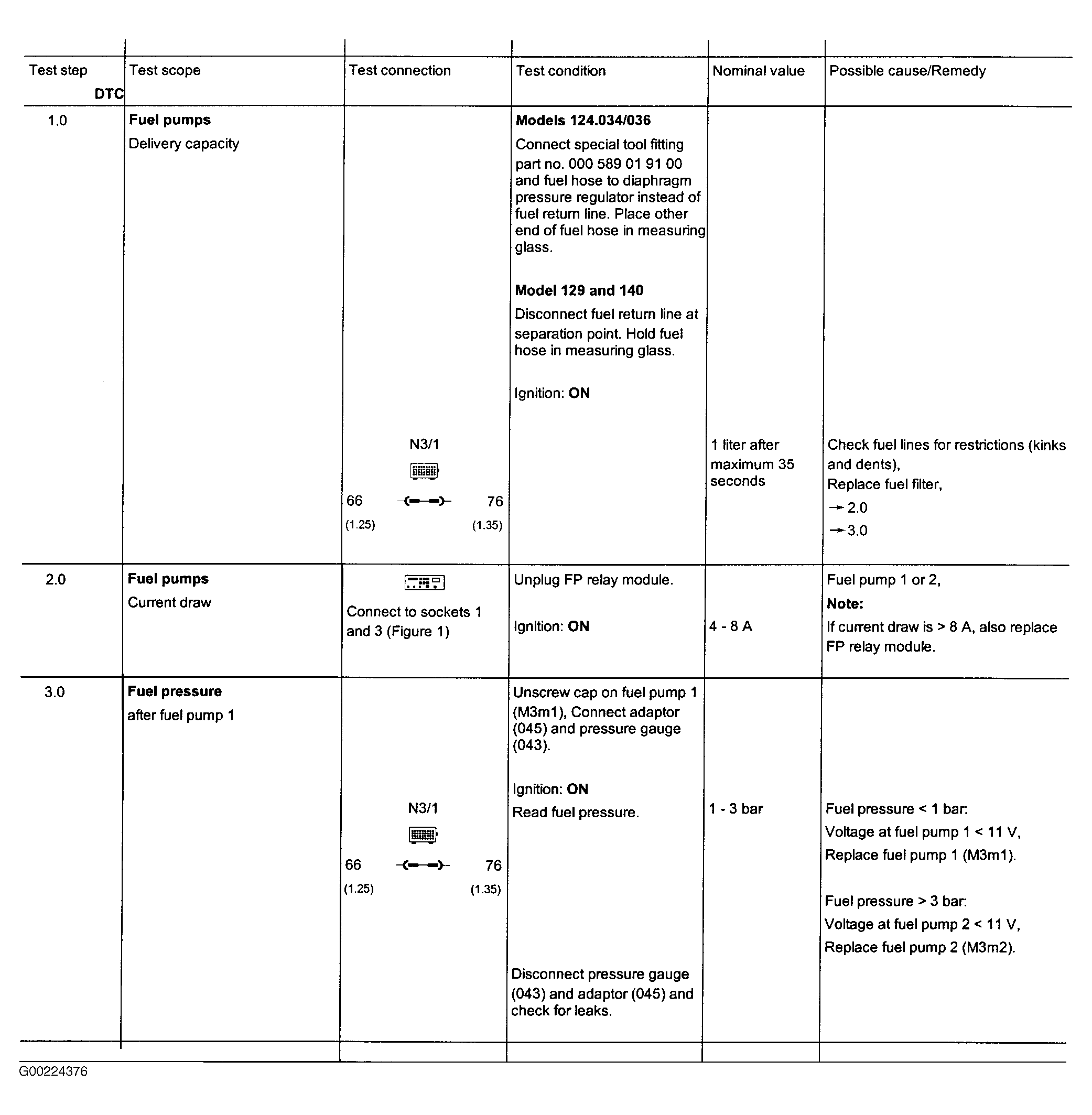

Fig 1: Fuel Pump Test - Section 34 (Steps 1.0-3.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
