Connector Identification (Section 22)

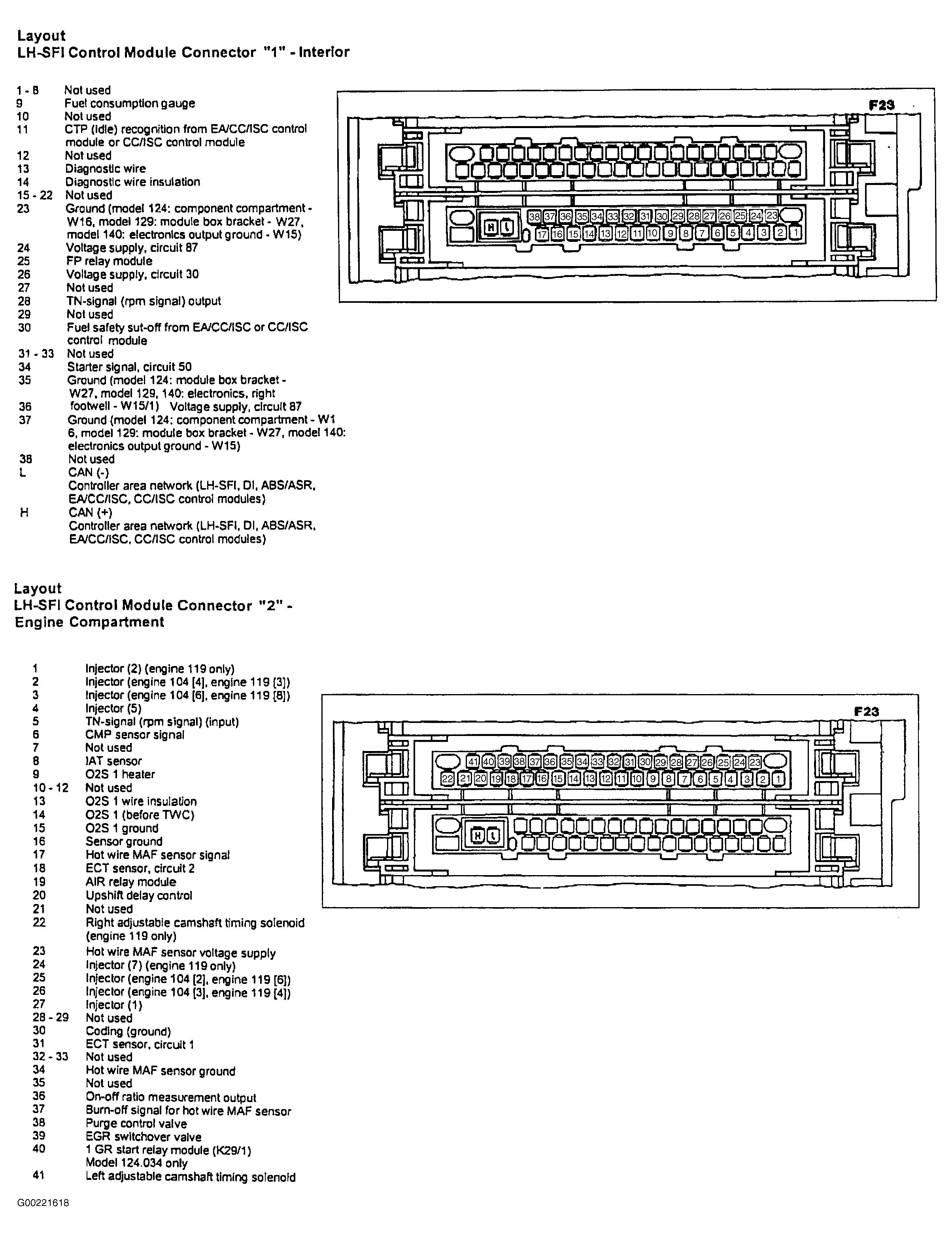

Fig 1: LH-SFI Control Module Connector Pin Identification

G00221618

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
