DISABLING & ACTIVATING AIR BAG SYSTEM Disabling System: Notes
WARNING: This page is about a different car, the 1997 Mercedes-Benz SL500 and 1997 Mercedes-Benz SL320. However, it is still accessible from the selected car via links, so may be relevant.

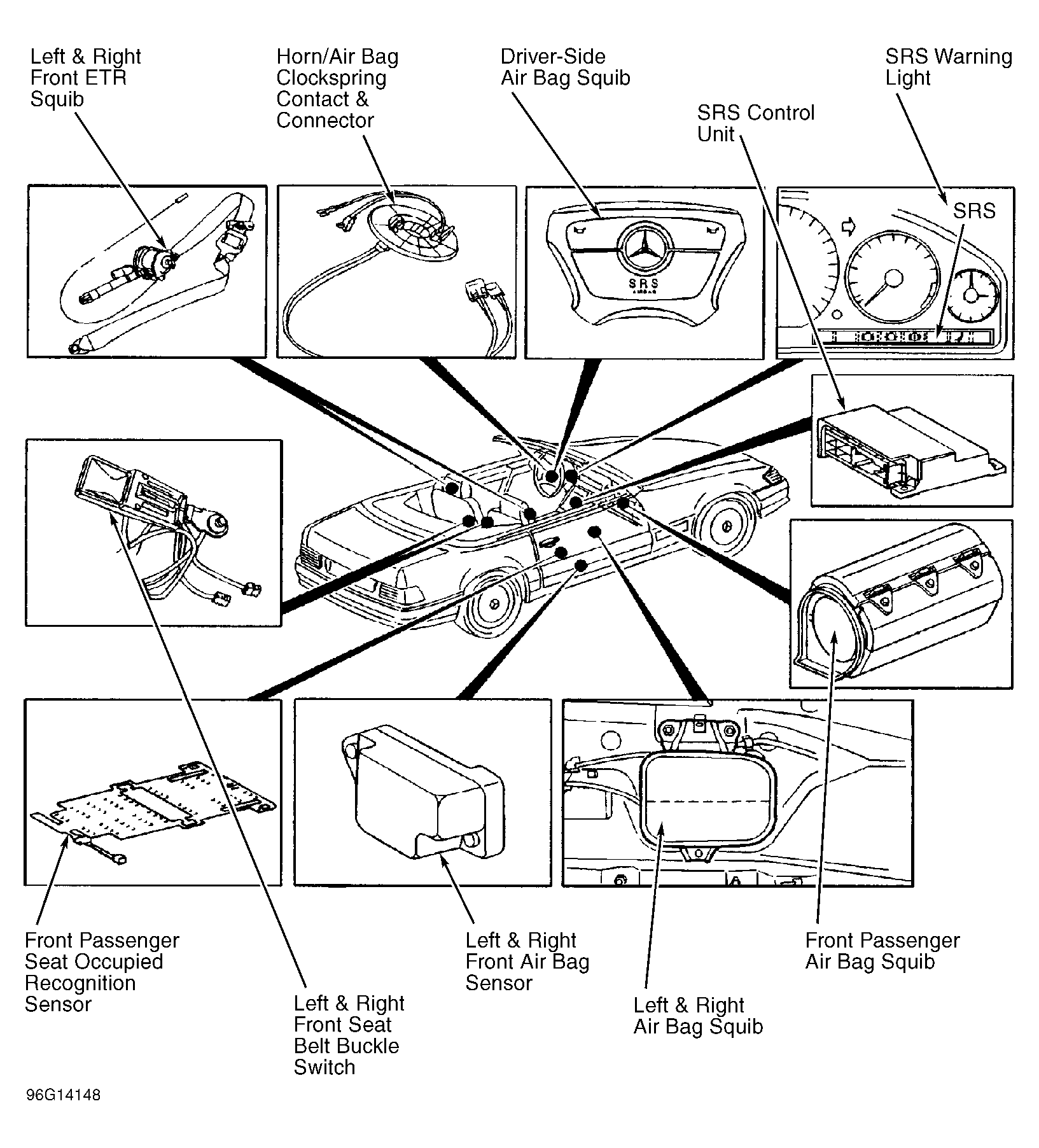

Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS . Turn ignition off. Disconnect and shield negative battery cable. Remove passenger foot mat. Remove passenger footrest. Disconnect SRS system connector (X29/9) located at passenger footwell area. See Fig 1. System is now disabled.
