Engine Controls - Tests W/Codes - Electronic Accelerator Controls
>>
System Tests
>>
Electronic Acceleration System Tests (Section 23)
>>
Electronic Acceleration System Tests 8.0
Electronic Acceleration System Tests 8.0

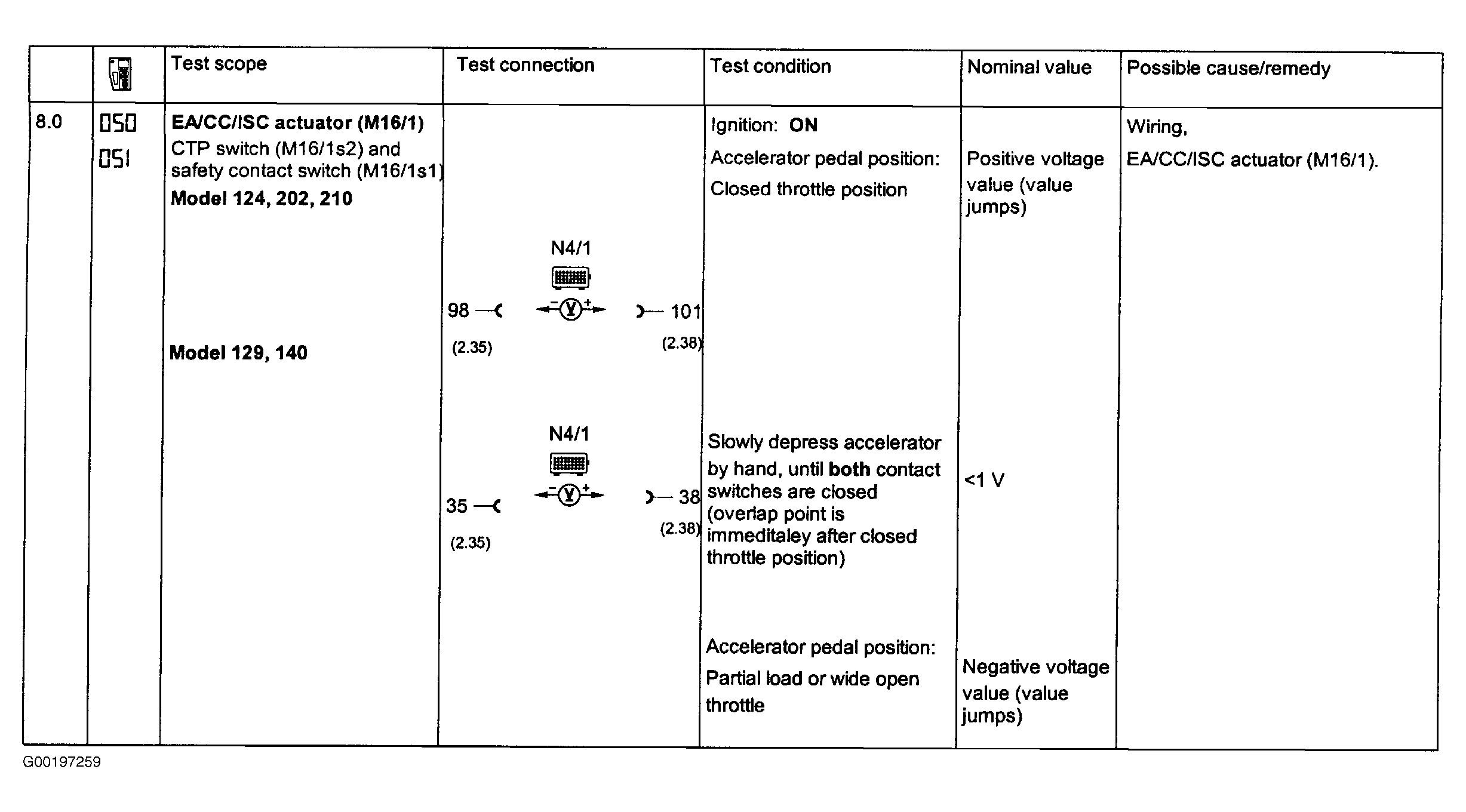

Fig 1: Electronic Acceleration System Tests (Step 8.0)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
