Electronic Acceleration System Tests 15.0 & 16.0

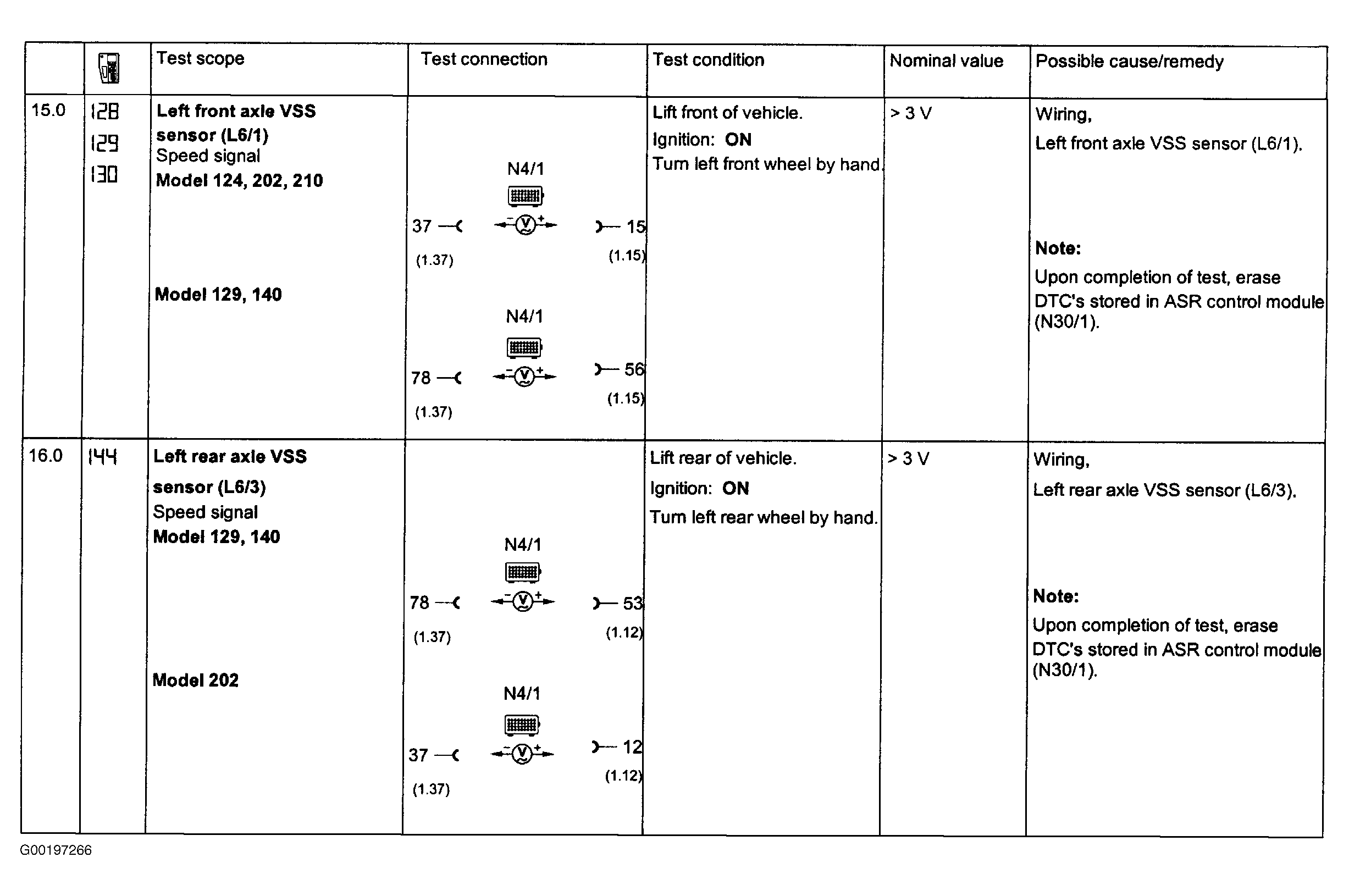

Fig 1: Electronic Acceleration System Tests (Steps 15.0 & 16.0)

G00197266

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
