Electronic Acceleration System Tests 10.0

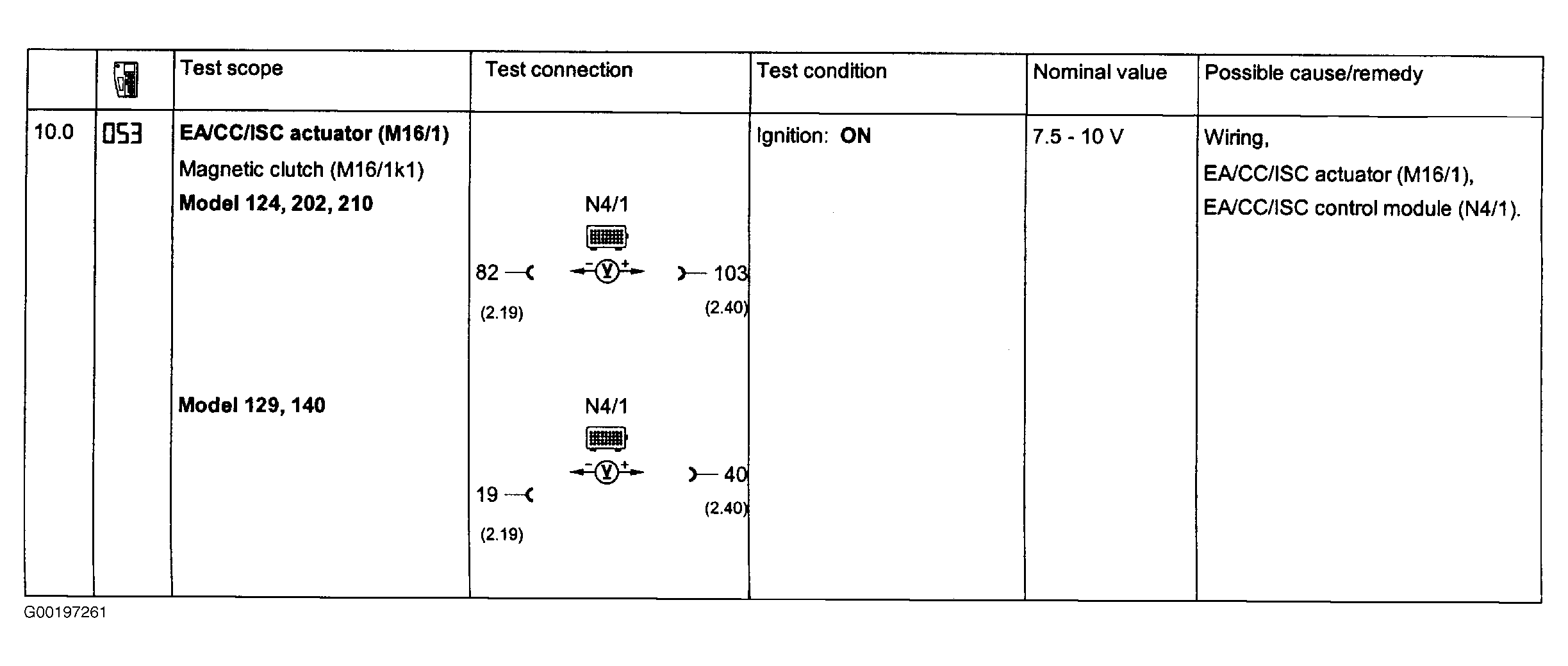

Fig 1: Electronic Acceleration System Tests (Step 10.0)

G00197261

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
