Electronic Acceleration System Tests 1.0

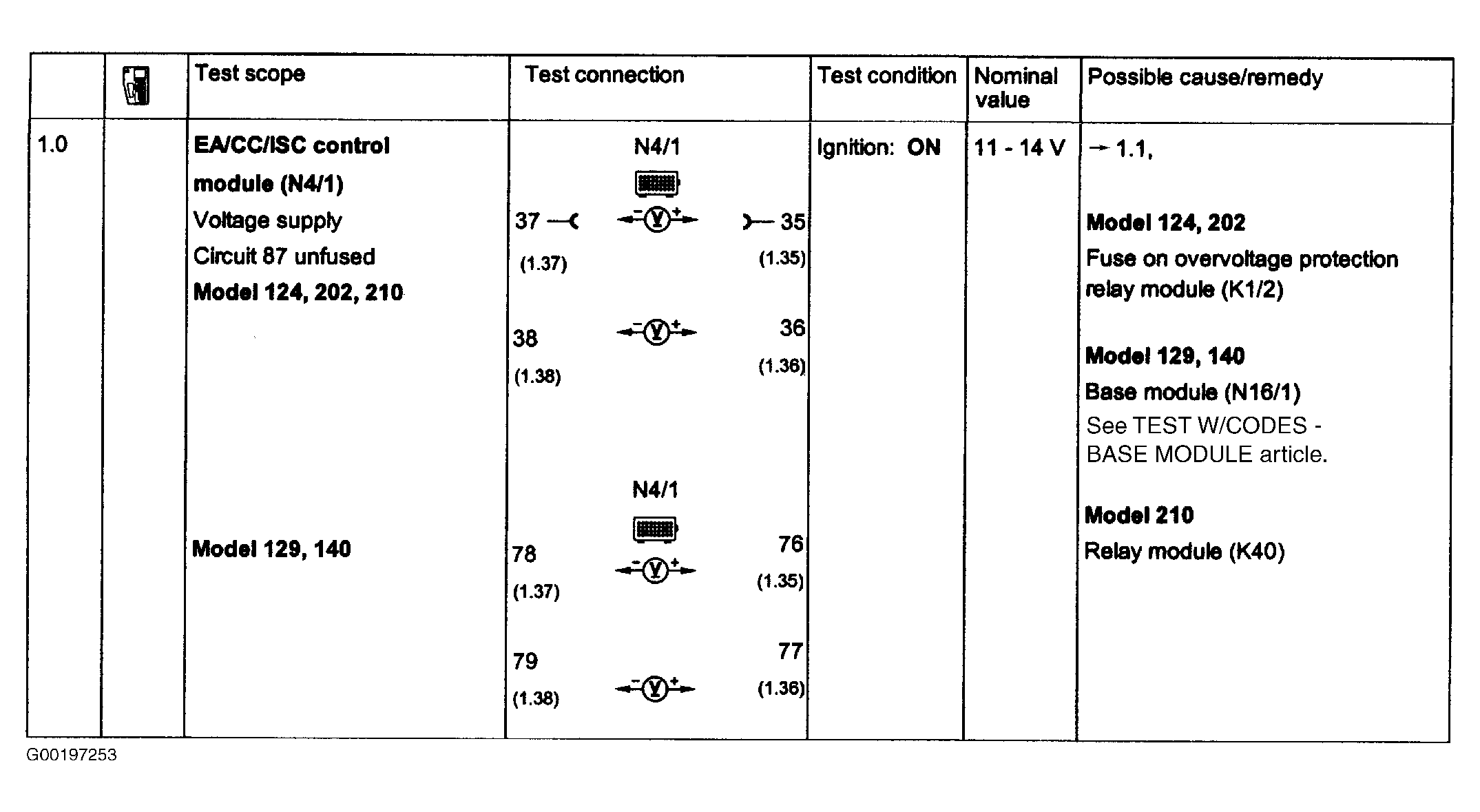

Fig 1: Electronic Acceleration System Tests (Step 1.0)

G00197253

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
