Home >> Mercedes Benz >> 1994 >> SL320 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes - Diagnostic Module >> Diagnostic Trouble Code Definitions >> P1701, P1700, P030x, P0300, P030x, P0300

P1701, P1700, P030x, P0300, P030x, P0300

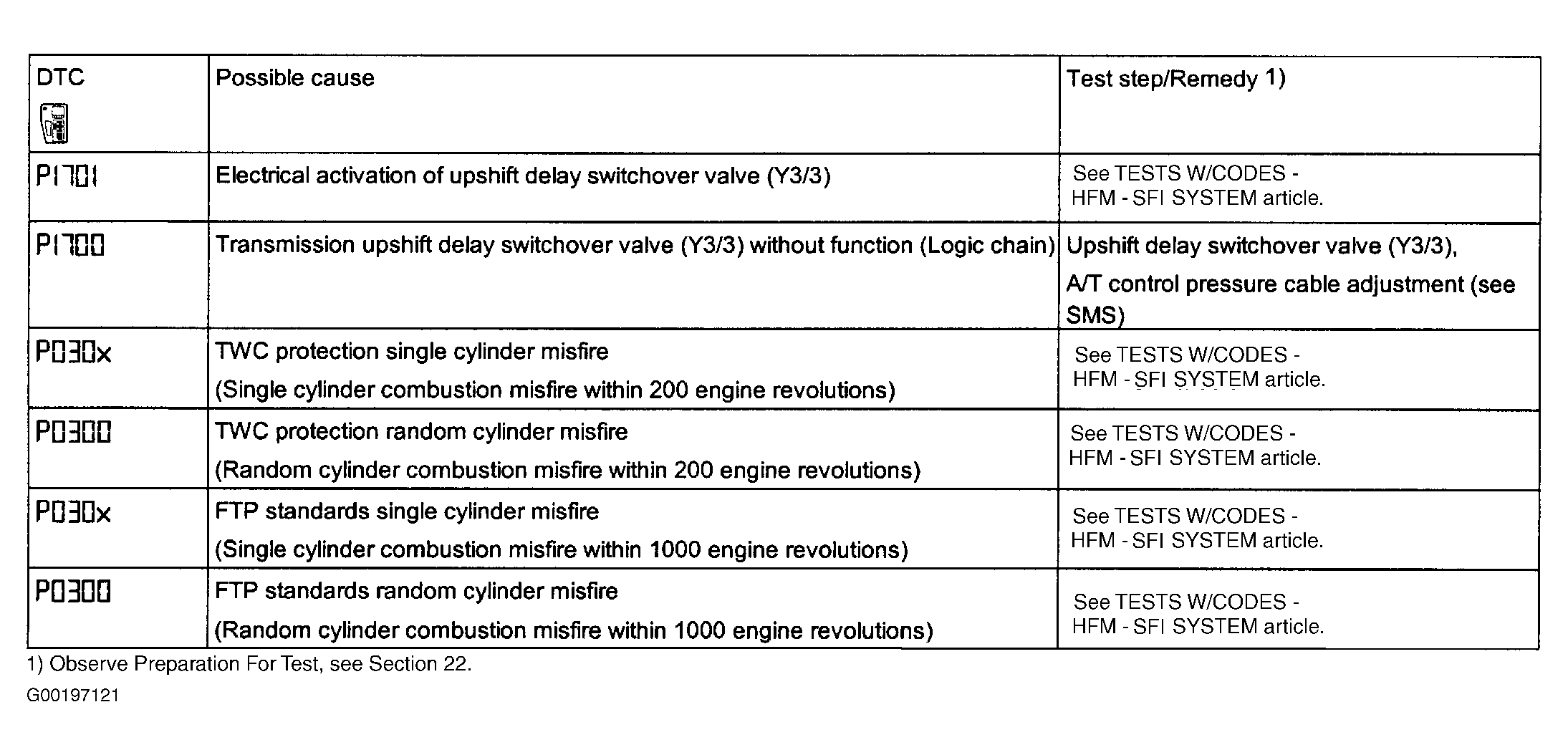

Fig 1: Diagnostic Trouble Code Definitions (P1701, P1700, P030x, P0300, P030x, P0300)

G00197121

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
