P0411, P1400, P0400, P0507, P0505, P030x, P0300

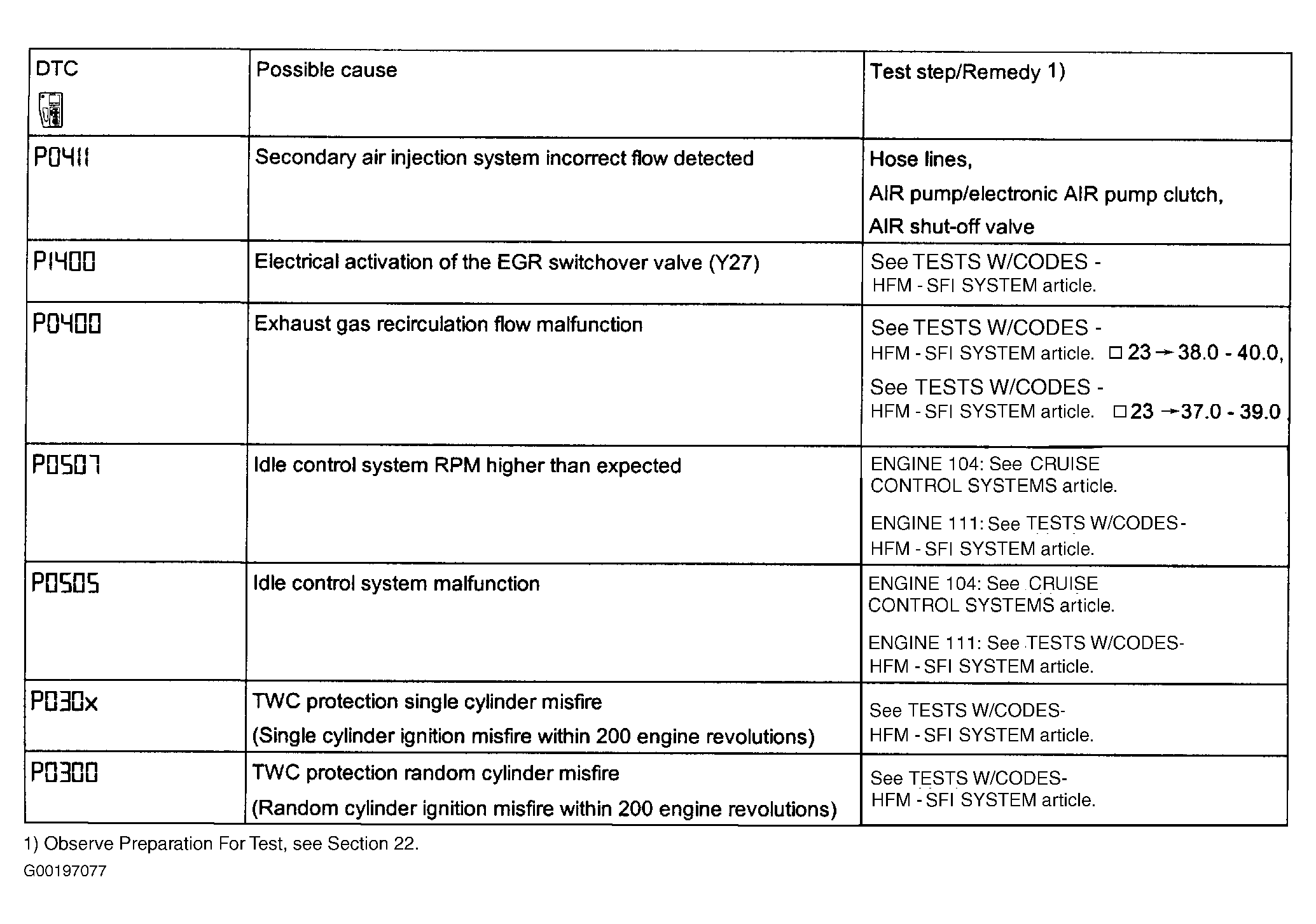

Fig 1: Diagnostic Trouble Code Definitions (P0411, P1400, P0400, P0507, P0505, P030x, P0300)

G00197077

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
