Engine Controls - Tests W/Codes - Diagnostic Module
>>
Diagnostic Trouble Code Definitions
>>
P030x, P0300, P030x, P0300, P0420, P1342, P1341
P030x, P0300, P030x, P0300, P0420, P1342, P1341

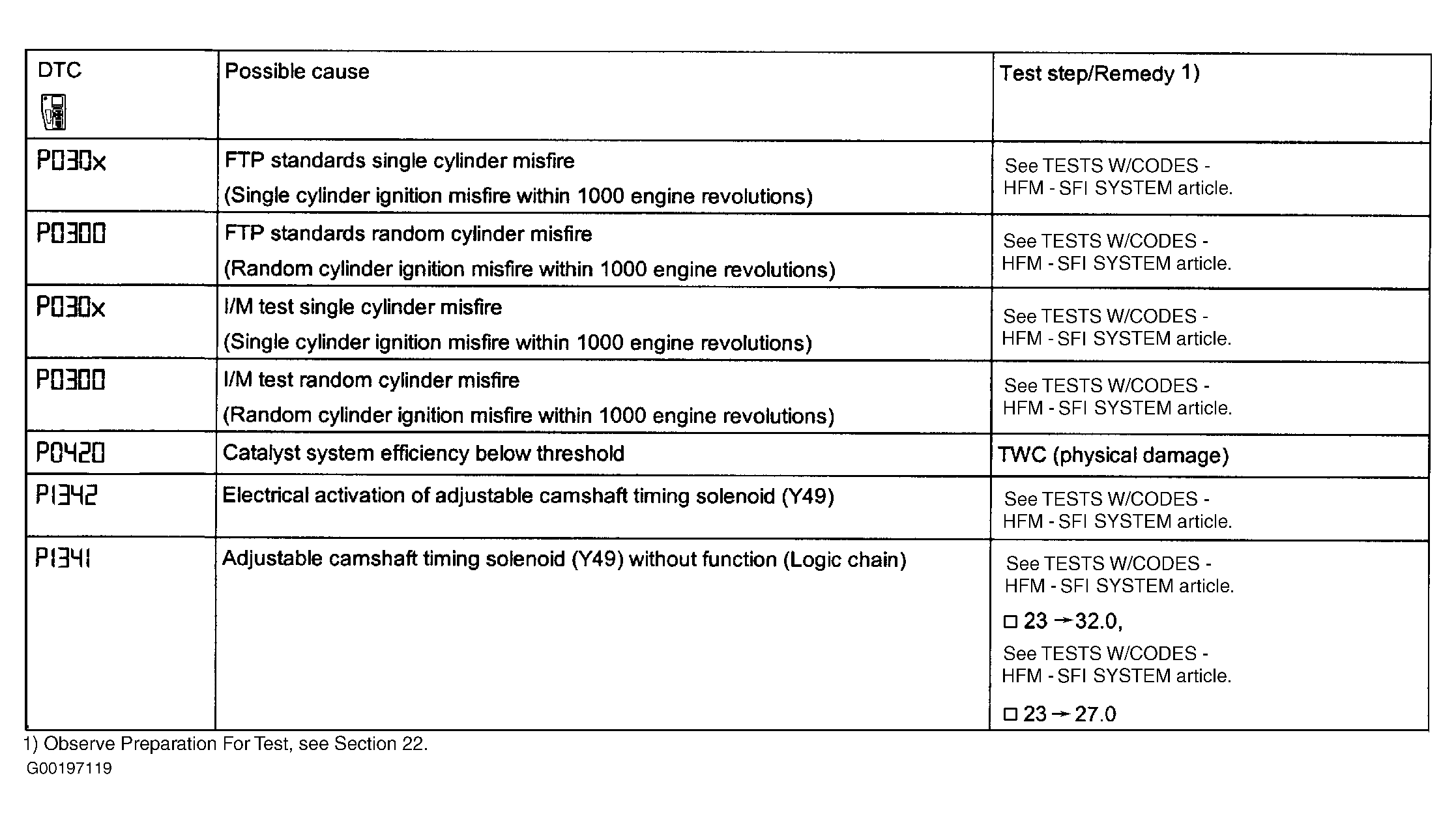

Fig 1: Diagnostic Trouble Code Definitions (P030x, P0300, P030x, P0300, P0420, P1342, P1341)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
