Test Preparation (Section 22)

CAUTION: To avoid damaging control modules all electrical testing should be done with a DVOM. DO NOT use an analog meter or test light to check control module circuits.

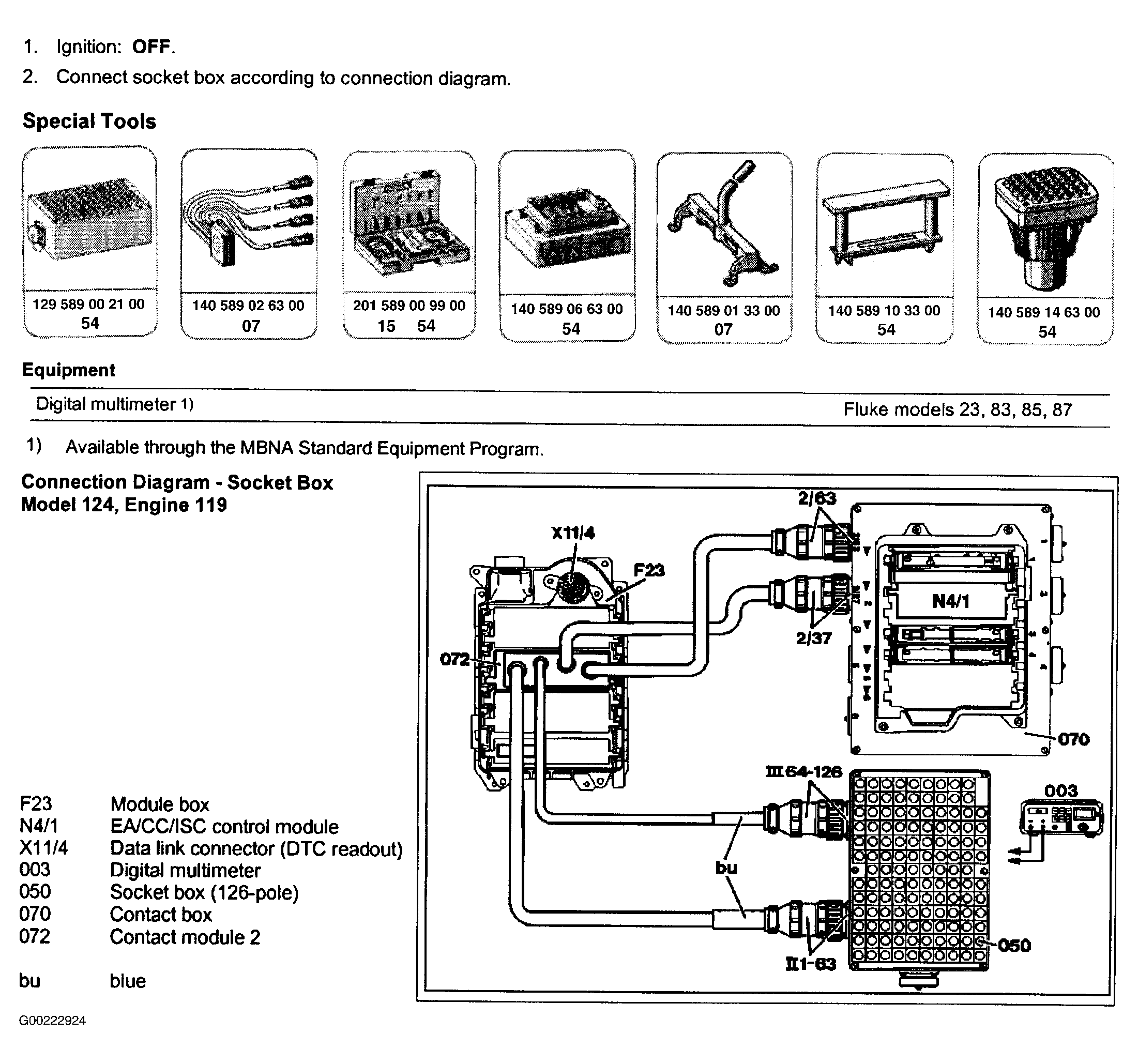

Fig 1: Preparing For Electrical System Test & Identifying Test Connectors

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
