Electronic Acceleration System Tests 13.0 & 14.0

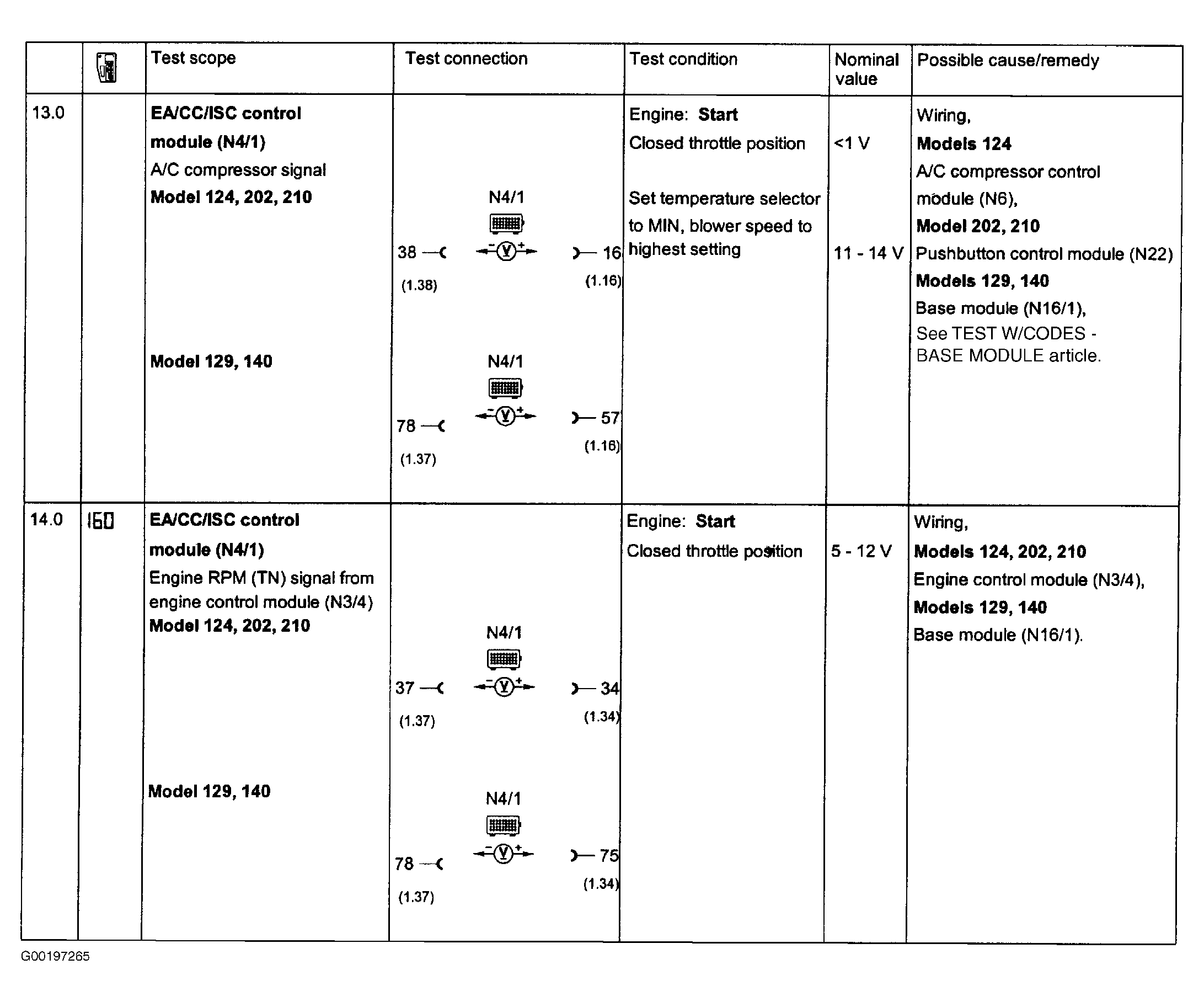

Fig 1: Electronic Acceleration System Tests (Steps 13.0 & 14.0)

G00197265

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
