Electronic Acceleration System Tests 7.0

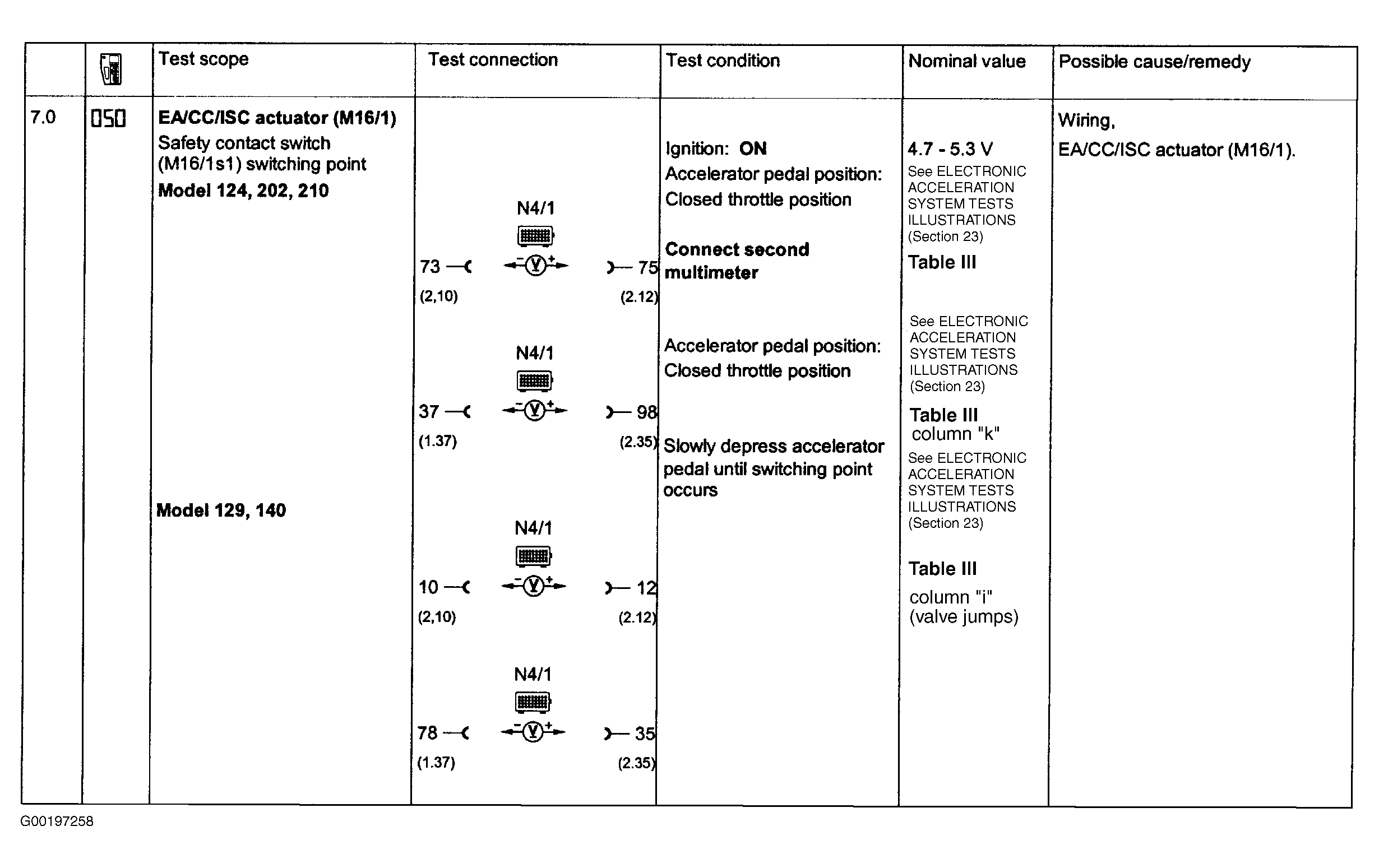

Fig 1: Electronic Acceleration System Tests (Steps 7.0)

G00197258

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
