Electronic Acceleration System Tests 11.0

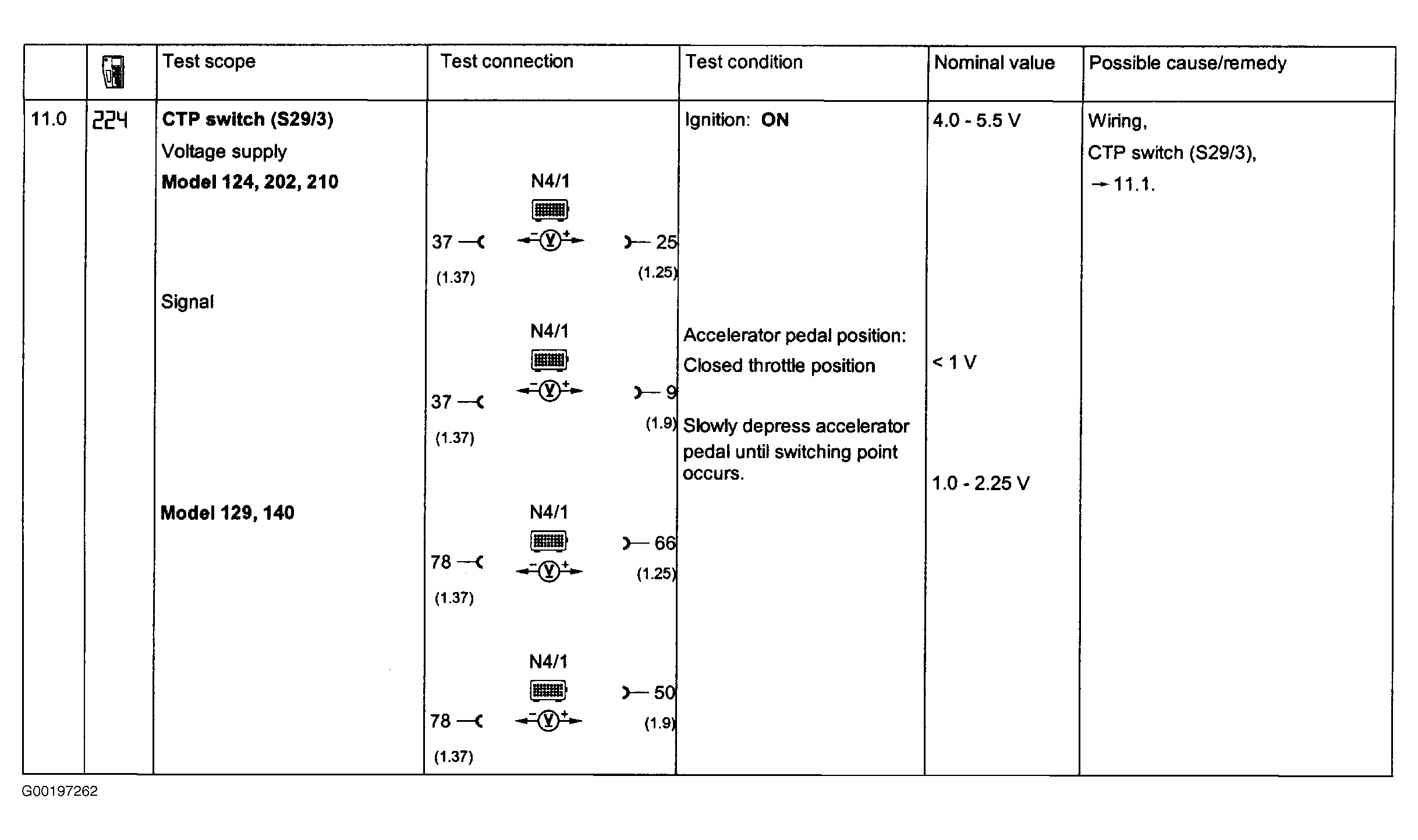

Fig 1: Electronic Acceleration System Tests (Step 11.0)

G00197262

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
