Home >> Mercedes Benz >> 1994 >> C280 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes - Diagnostic Module >> Diagnostic Trouble Code Definitions >> P0200, P1170, P0170, P0443, P1443, P0441, P1444

P0200, P1170, P0170, P0443, P1443, P0441, P1444

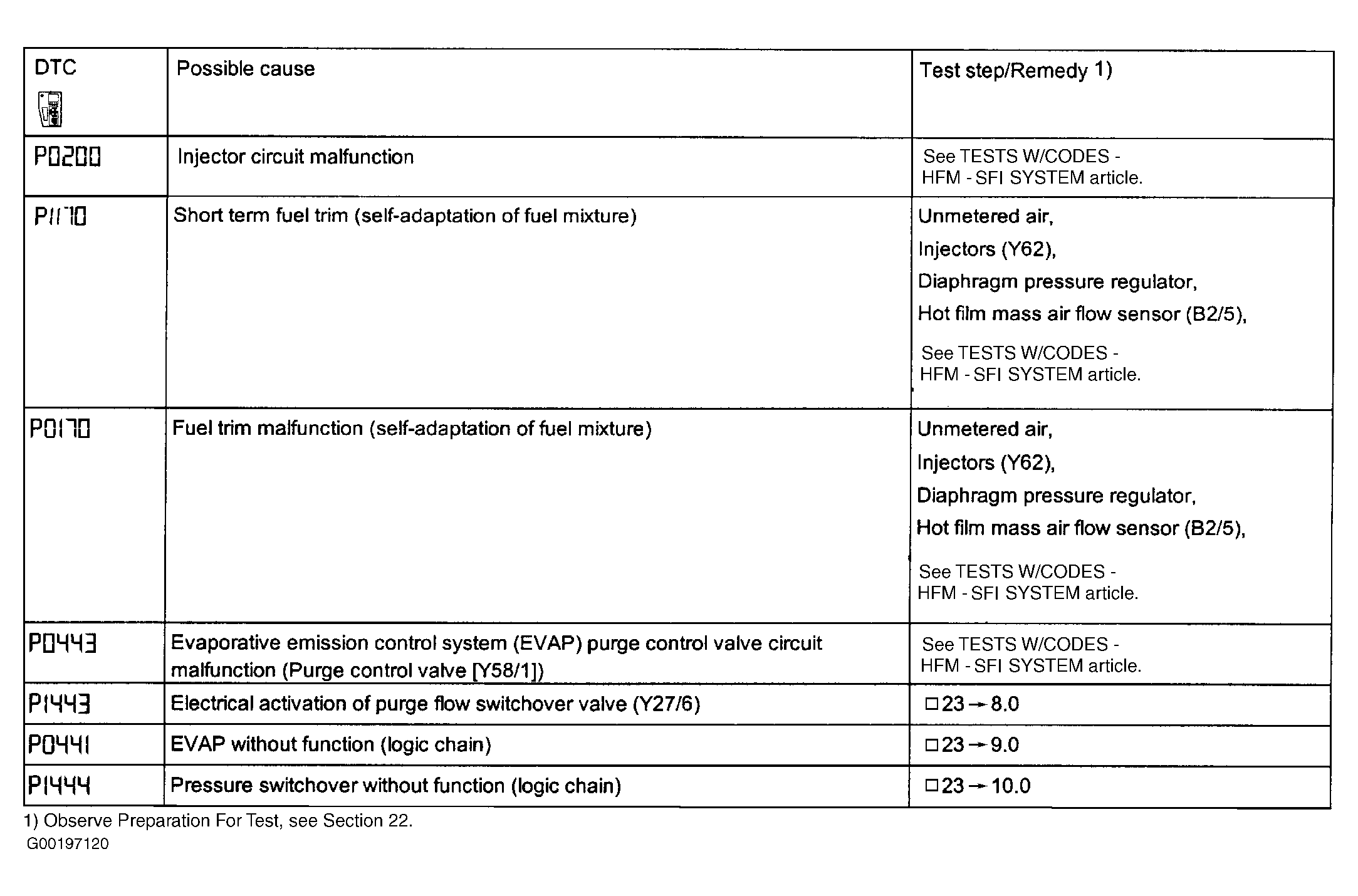

Fig 1: Diagnostic Trouble Code Definitions (P0200, P1170, P0170, P0443, P1443, P0441, P1444)

G00197120

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
