Remote Control Locking & Infrared Drive Authorization System Control Module

NOTE: Only applicable for models 124.060, 062, 066 as of 3/96.
NOTE: When control module or one of remote control keys is replaced it is absolutely necessary to indicate lock number, because two parts are matched to one another. After replacing infrared drive authorization system control module (N54/1) perform version coding.

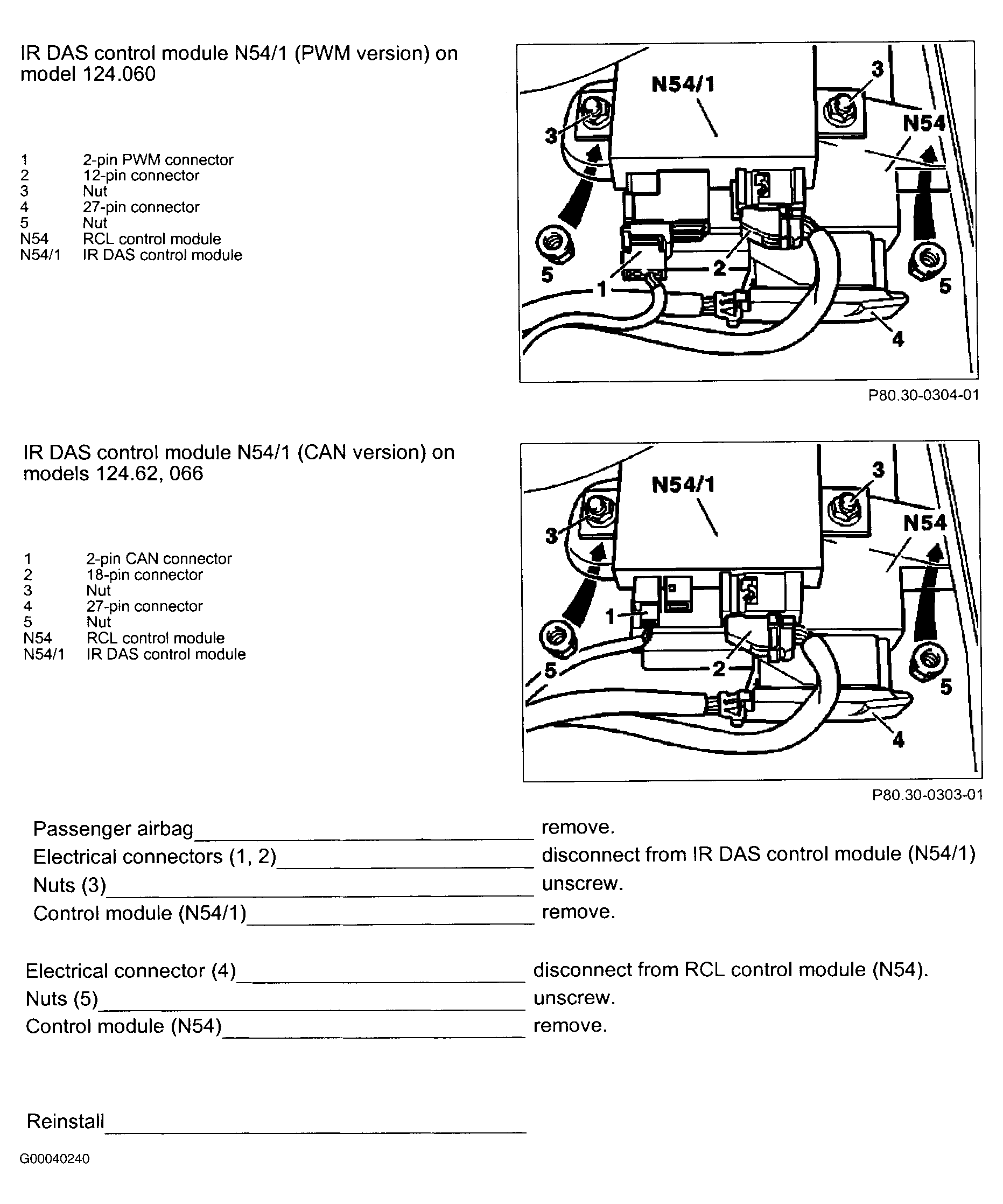

Fig 1: Removal & Installation Of Remote Control Locking & Infrared Drive Authorization System Control Module
G00040240Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
