Synchronizing Infrared Remote Control Signal

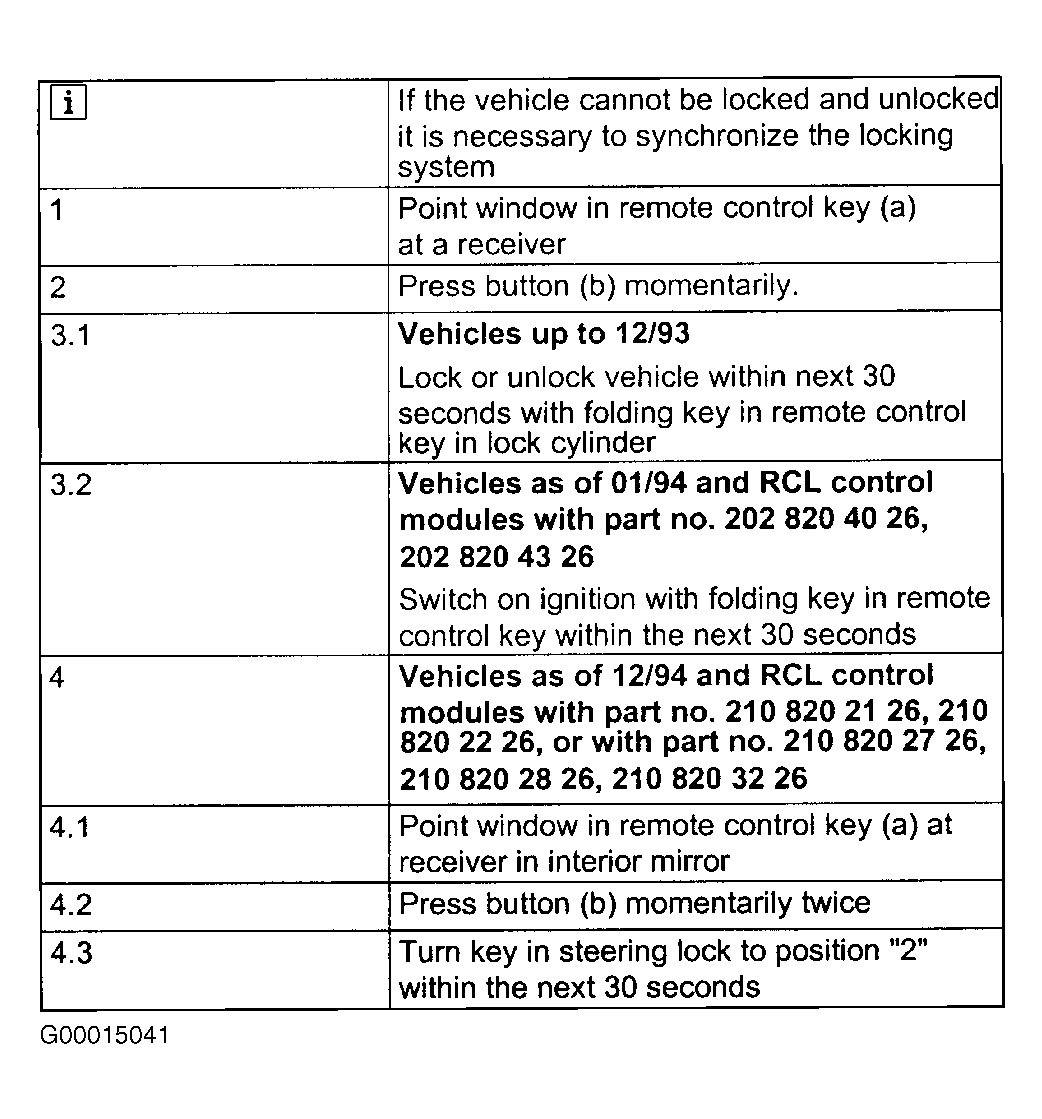

Fig 1: Synchronizing Infrared Remote Control Signal

G00015041

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
