Control Panel: Notes
WARNING: This page is about a different car, the 1999 Mercedes-Benz C230. However, it is still accessible from the selected car via links, so may be relevant.

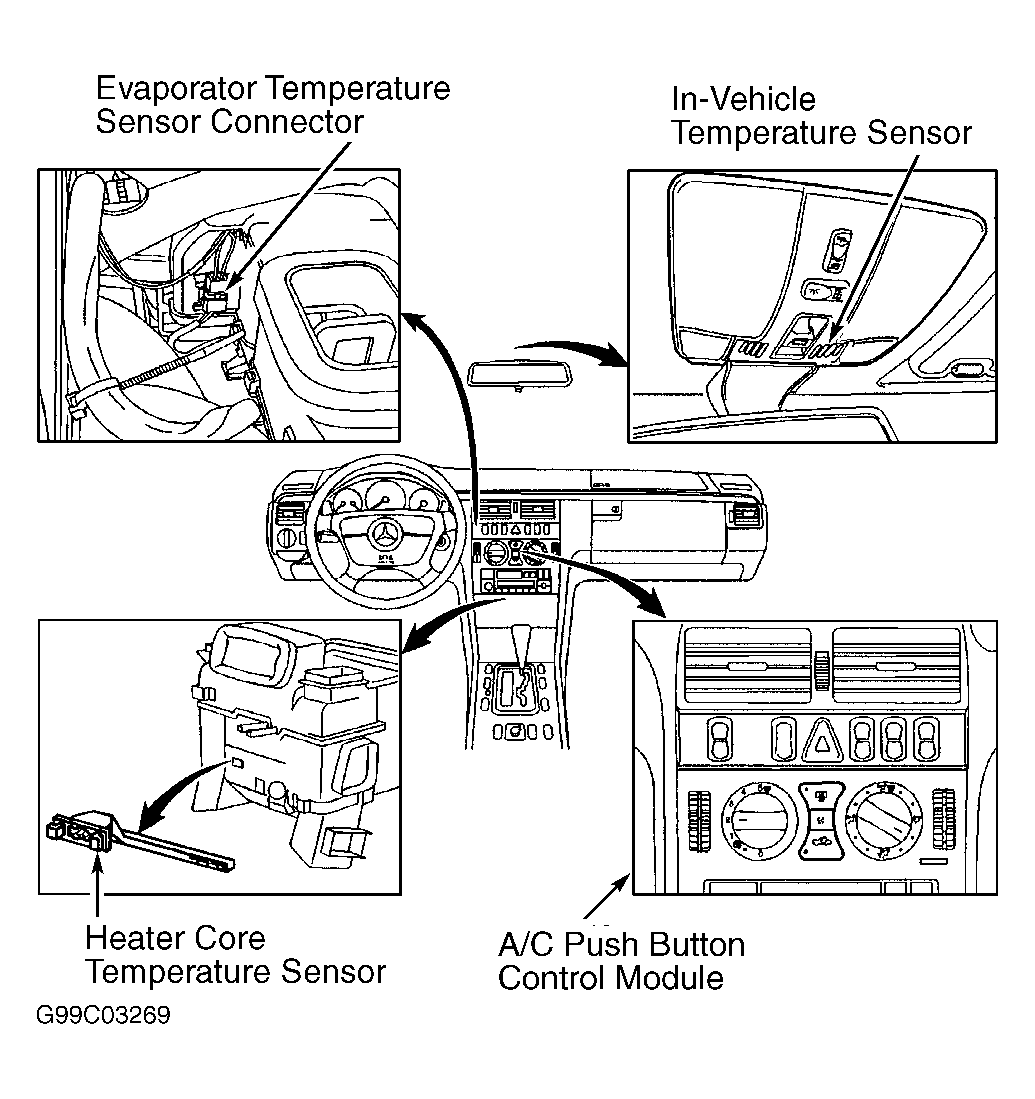

The A/C push-button control unit (A/C-heater control panel), consists of temperature control, mode selection, fan control, and air recirculation functions. See Figure.
