Safety Precautions
The increased demands on the ignition systems of modern engines and the desire for maintenance free operation have lead to the introduction of electronic ignition systems. As a rule, the sparking power of an electronic system is higher than a conventional system; additional increases in performance are characteristic of this type of system.
When working on the electronic ignition system (DI), the following safety precautions must be observed:
- Before performing work that requires cranking the engine (e.g. compression test) turn OFF ignition and disconnect connector 2 on the ignition control modules (N1/4 and N1/5) or connect safety plug, part number 102 589 02 21 00 to diagnostic socket.
- At cranking or idle speed, do not touch or disconnect any components of the ignition system.
- Perform installation work on the ignition system or ignition wires only when the engine/ignition is turned off (as well as connecting/disconnecting sensors only with the ignition switched off).
- No exposed metal connectors or sending units may be installed in the ignition wires (e.g. ignition wire, cylinder 1).

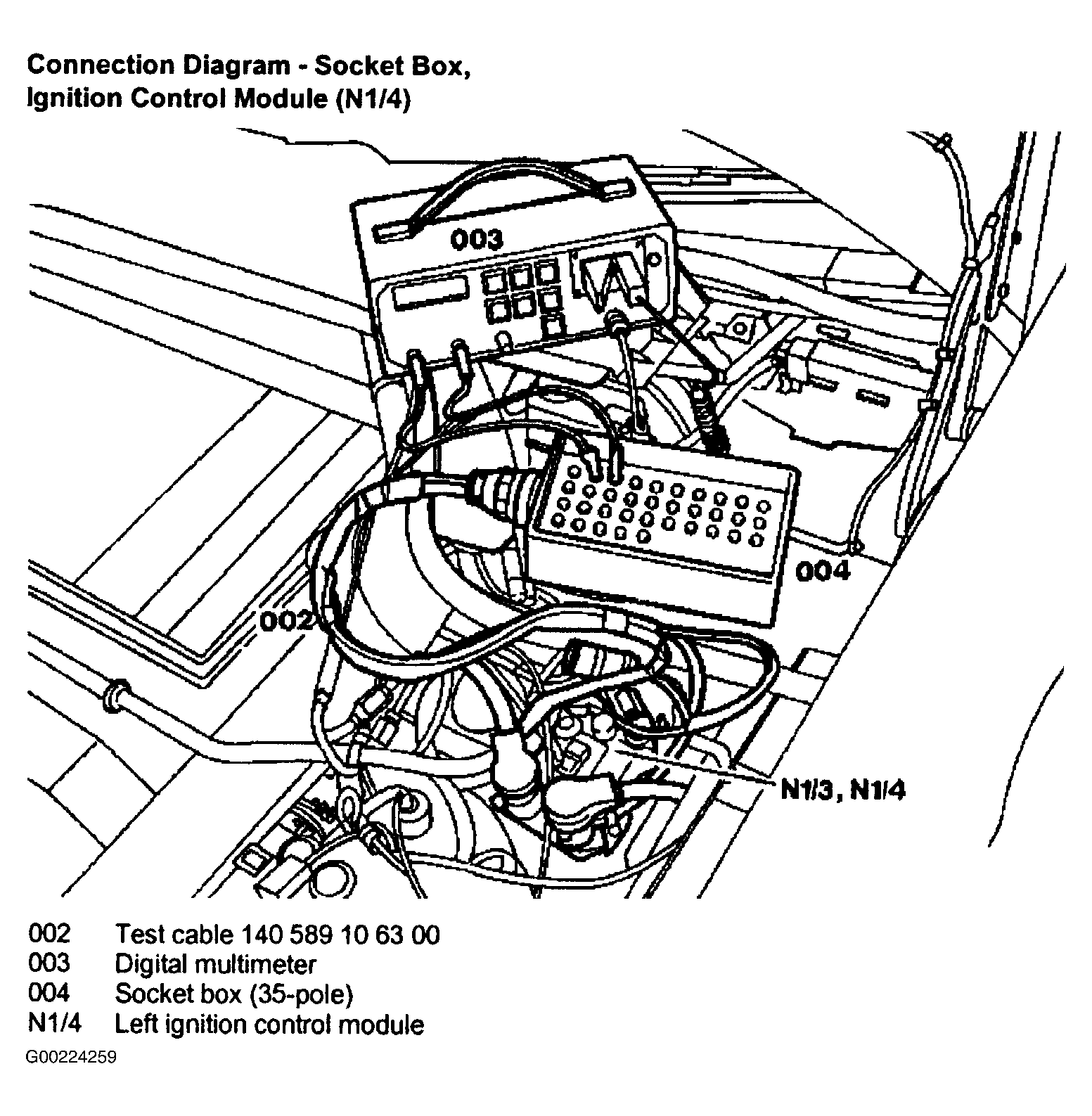

- To avoid damage to the DI control module (N1/4 and N1/5), connect/disconnect the control module connectors only when the ignition is turned OFF.
- Do not connect a test lamp to circuit 1 of the ignition coil.
- Circuit 1 of the ignition coil may not be shorted to ground (e.g. theft deterrence).
- To avoid reversing polarity, the threads on the ignition coil have different diameters (M5 and M6).
- Only original equipment components should be installed in the ignition system.
- Do not operate the ignition system at cranking speed unless the ignition harness is completely connected.
- To avoid damage to the ignition control module (N1/4 and N1/5), the high output side of the ignition system must carry at least 2000 ohms of load (distributor rotor 1000 ohms, each connection on the distributor cap 1000 ohms). Do not install a 5000 ohm distributor rotor for noise suppression.
- Do not perform any tests (grounding ignition cable 4, disconnecting a spark plug connector or pulling cable 4 out of the ignition coil) at cranking or idle speed.
- To better dissipate heat, the ignition control module (N1/3) is installed with thermal paste on the wheel well. When exchanging the control module, do not remove the foil shield, it does not influence heat dissipation.
- If the circuit breaker is activated (power balance test), and the engine stalls, then the test procedure with this tester cannot be performed.
- When testing the ignition coil separately, do not load the coil with more than 28 kV in order to avoid damage to the coil.
- If assisting a disabled vehicle and is becomes necessary to perform an ignition spark test, perform this test only on one ignition cable/spark plug. Ensure good ground connection to the spark plug.
- Ensure that the engine and ignition are turned OFF when connecting/disconnecting equipment such as voltage signal pickup on ignition cable 4 and trigger pick-up on cylinder 1 or 7.
