Connector Identification (Section 22)

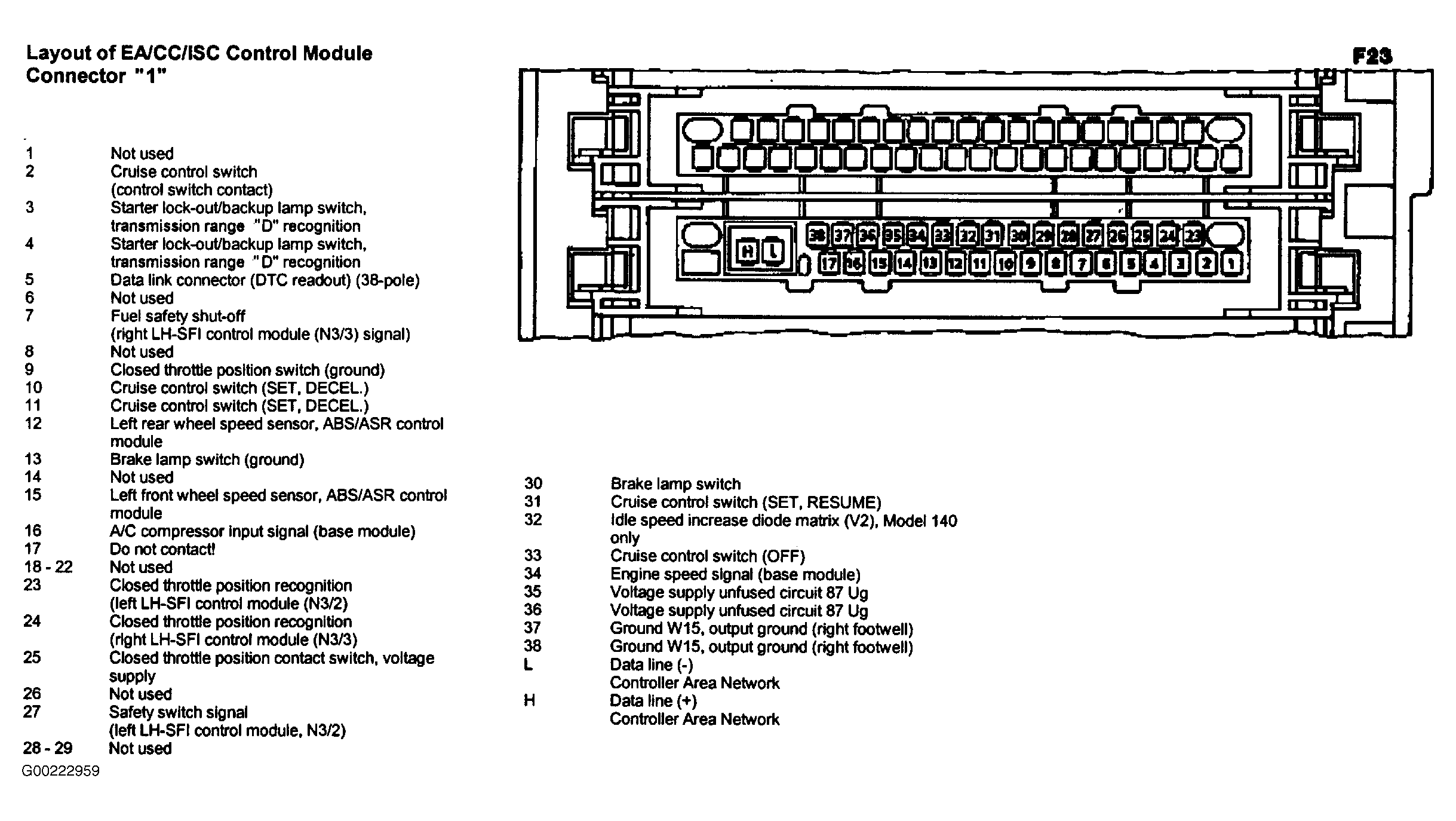

Fig 1: EA/CC/ISC Control Module Connector 1 Pin Identification
G00222959Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

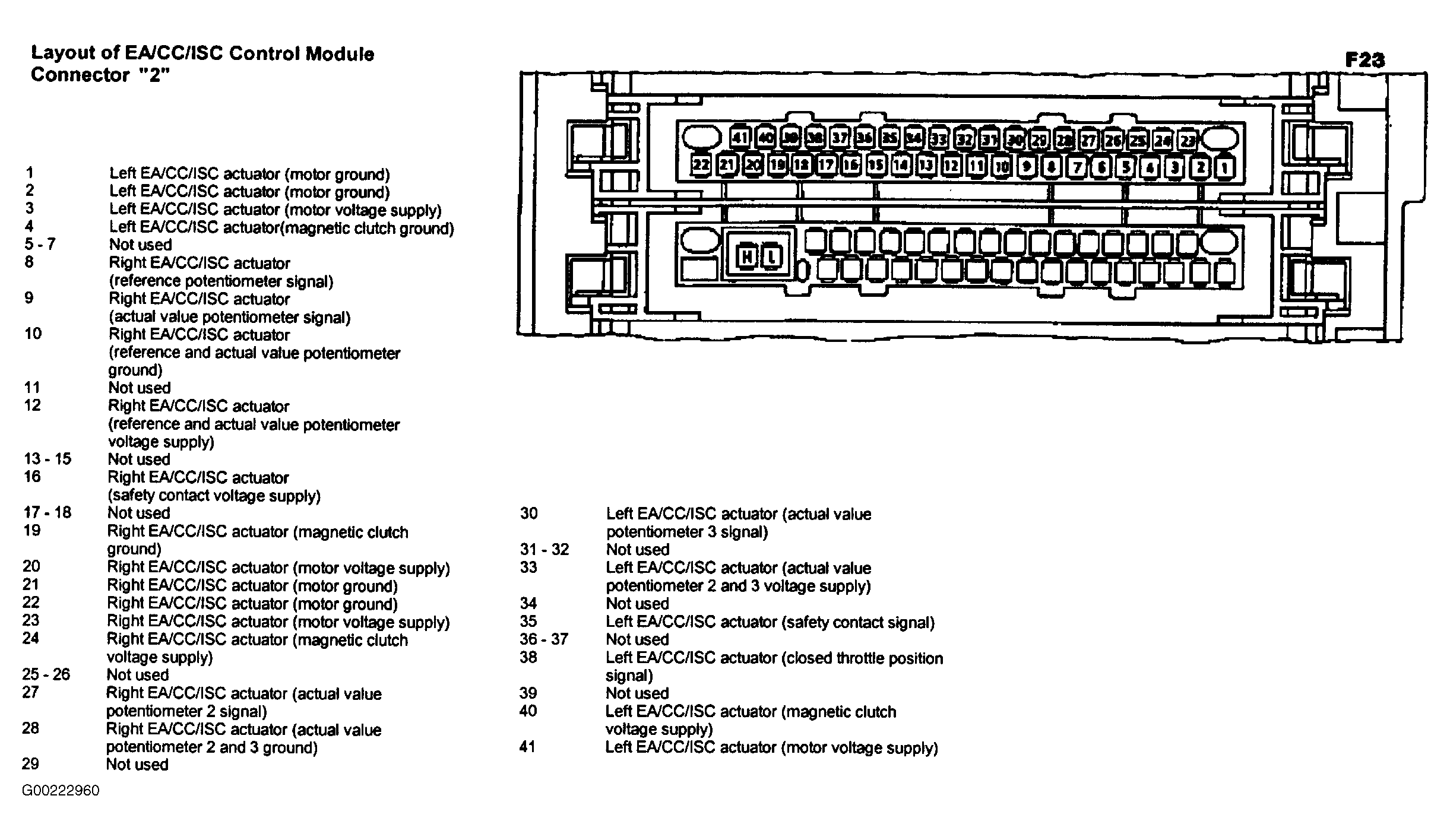

Fig 2: EA/CC/ISC Control Module Connector 2 Pin Identification
G00222960Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
