Electrical System Tests - Engine Runs (Section 24)

NOTE: For aid in using diagnostic charts, see USING DIAGNOSTIC CHARTS  .

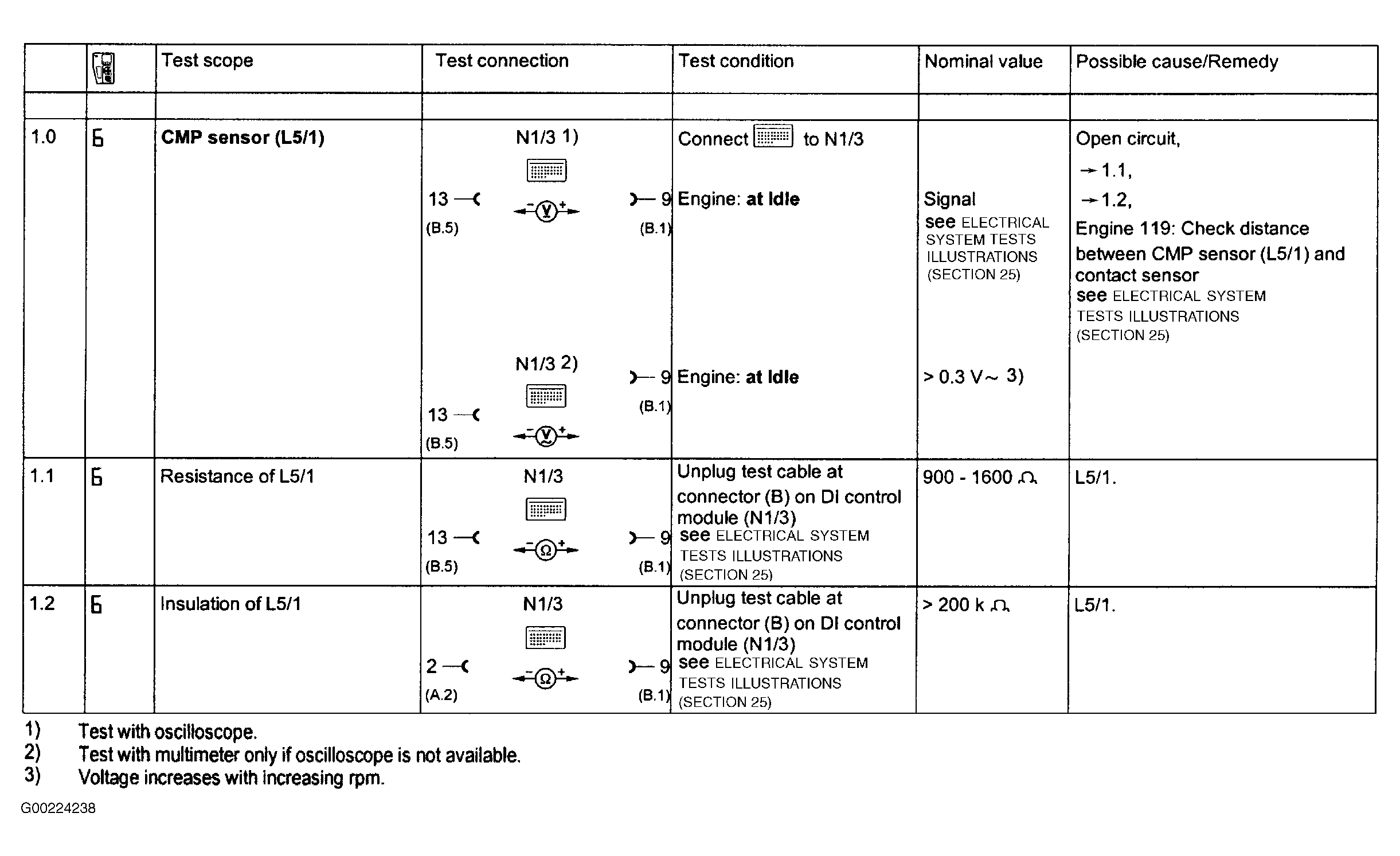

Fig 1: Electrical System Tests - Engine Runs - Section 24 (Steps 1.0-1.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

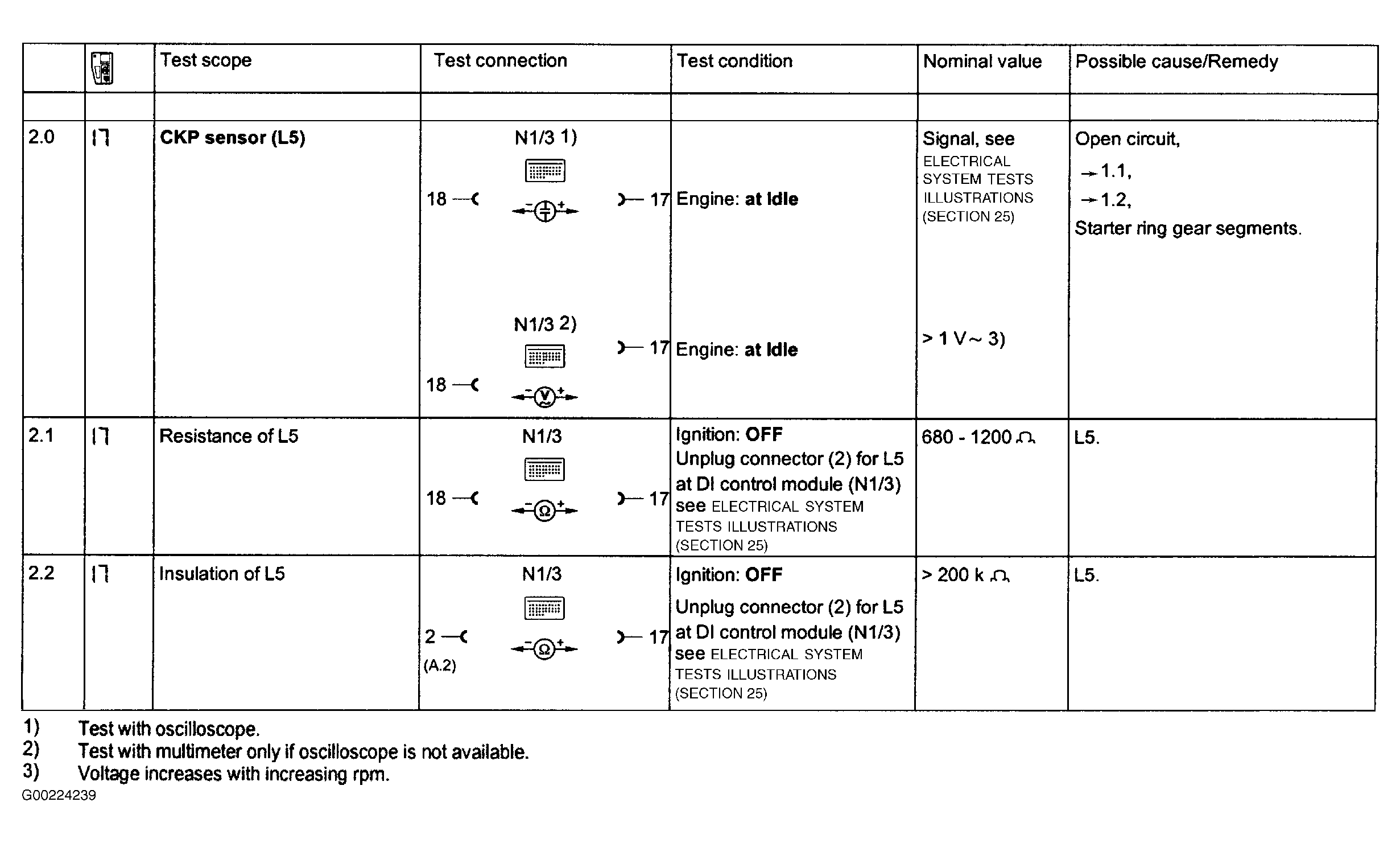

Fig 2: Electrical System Tests - Engine Runs - Section 24 (Steps 2.0-2.2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

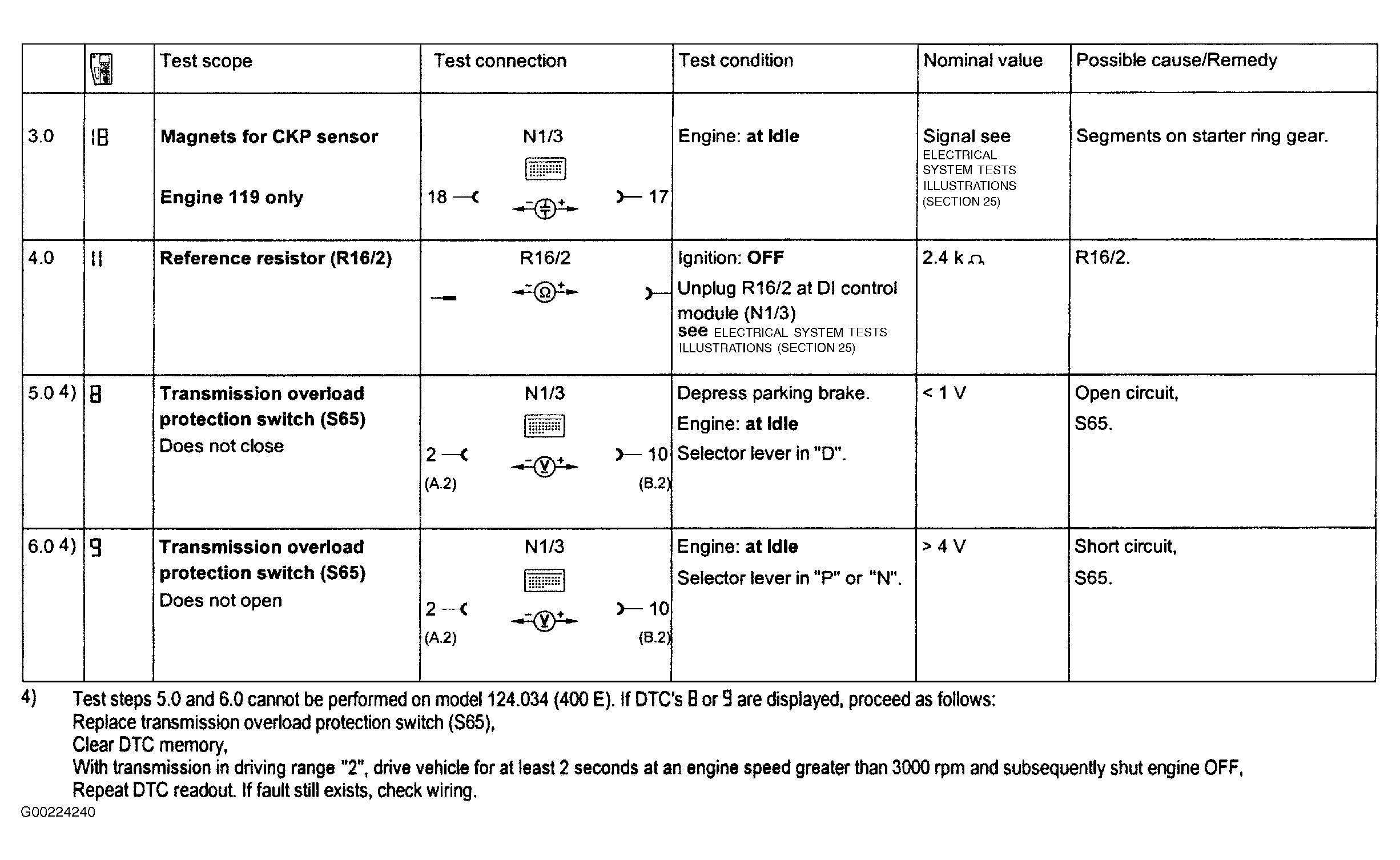

Fig 3: Electrical System Tests - Engine Runs - Section 24 (Steps 3.0-6.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

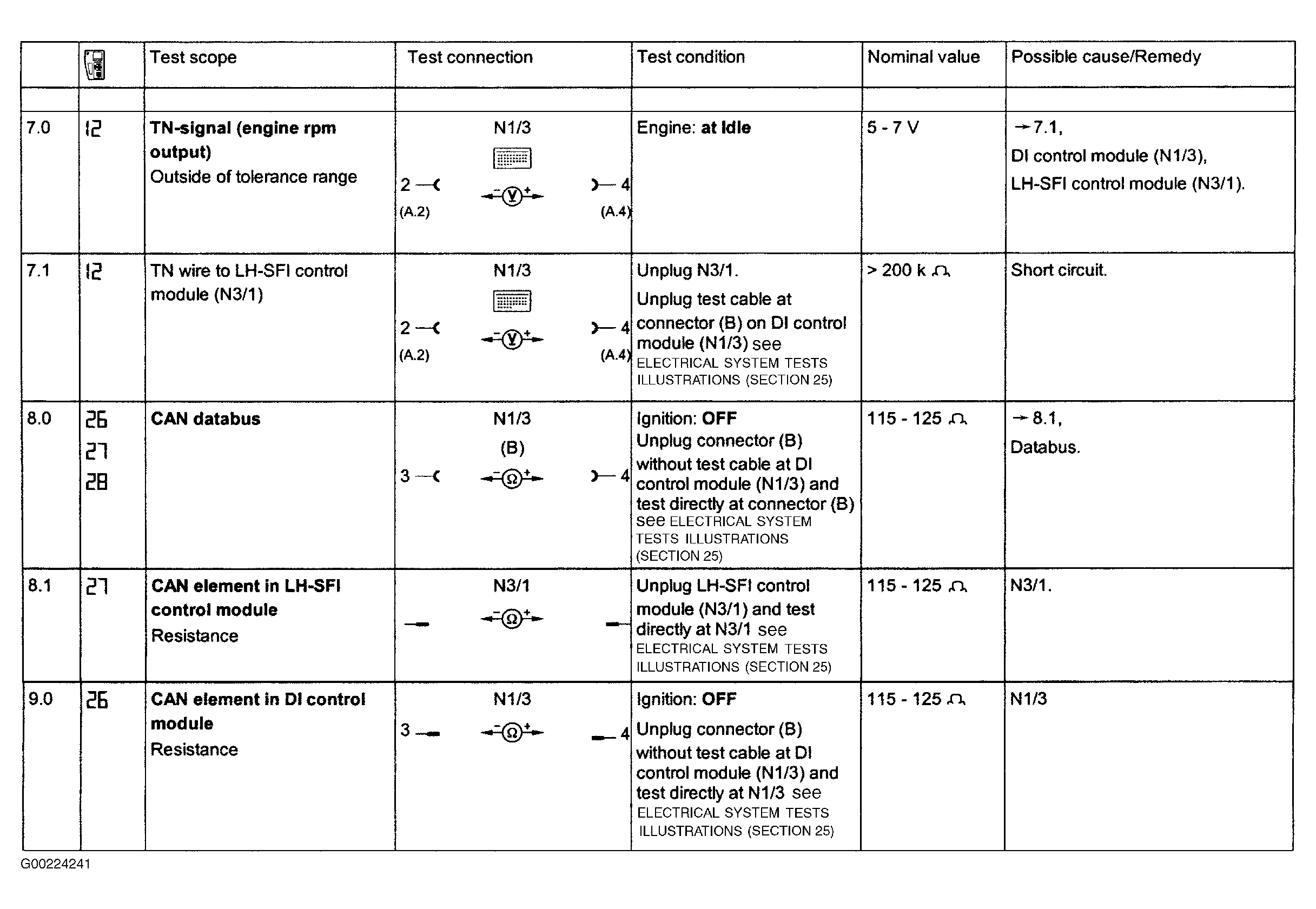

Fig 4: Electrical System Tests - Engine Runs - Section 24 (Steps 7.0-9.0)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
