Connector Identification (Section 22)

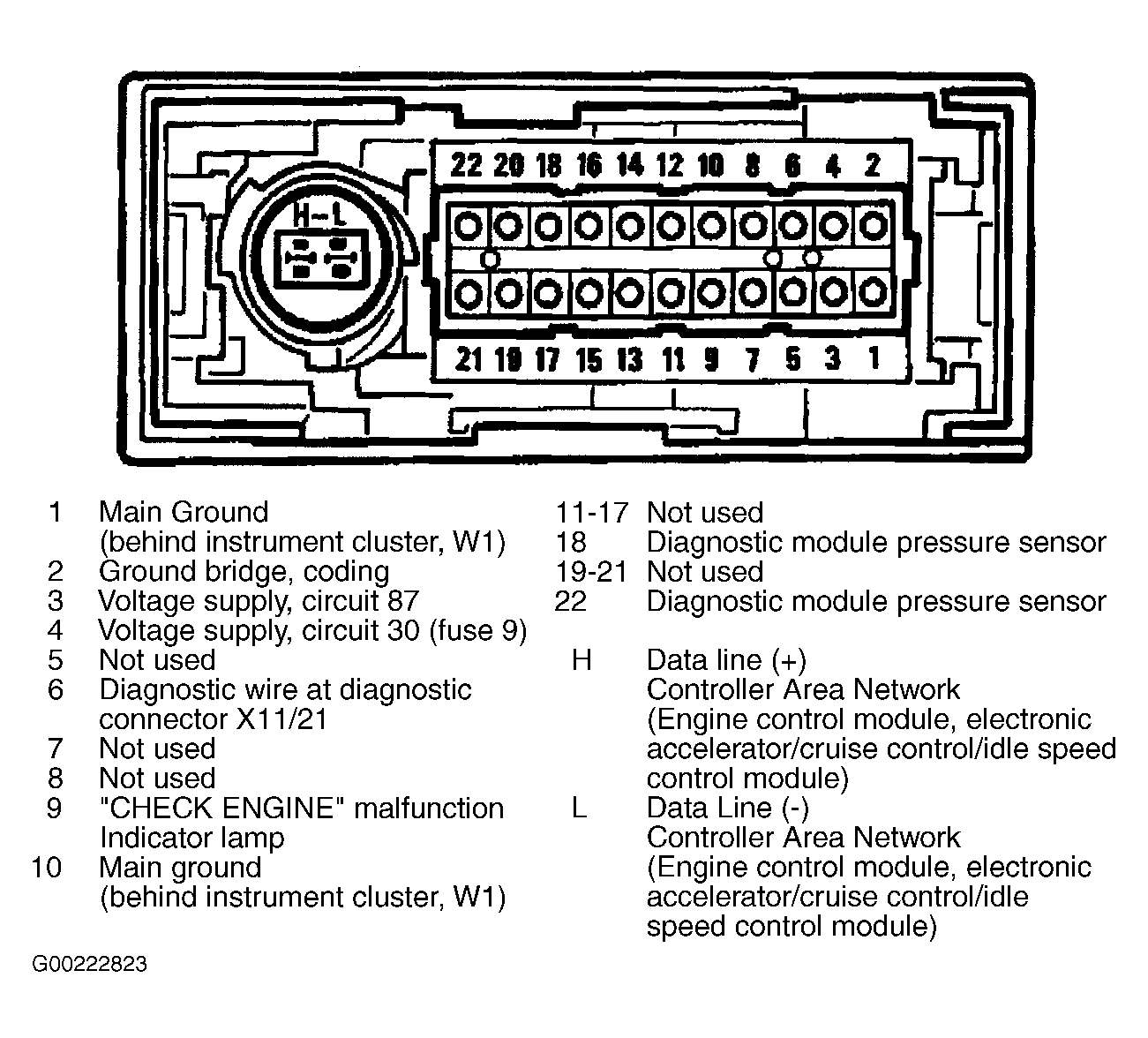

Fig 1: Diagnostic Module Connector Pin Identification

G00222823

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
