Coolant Temperature Sensor

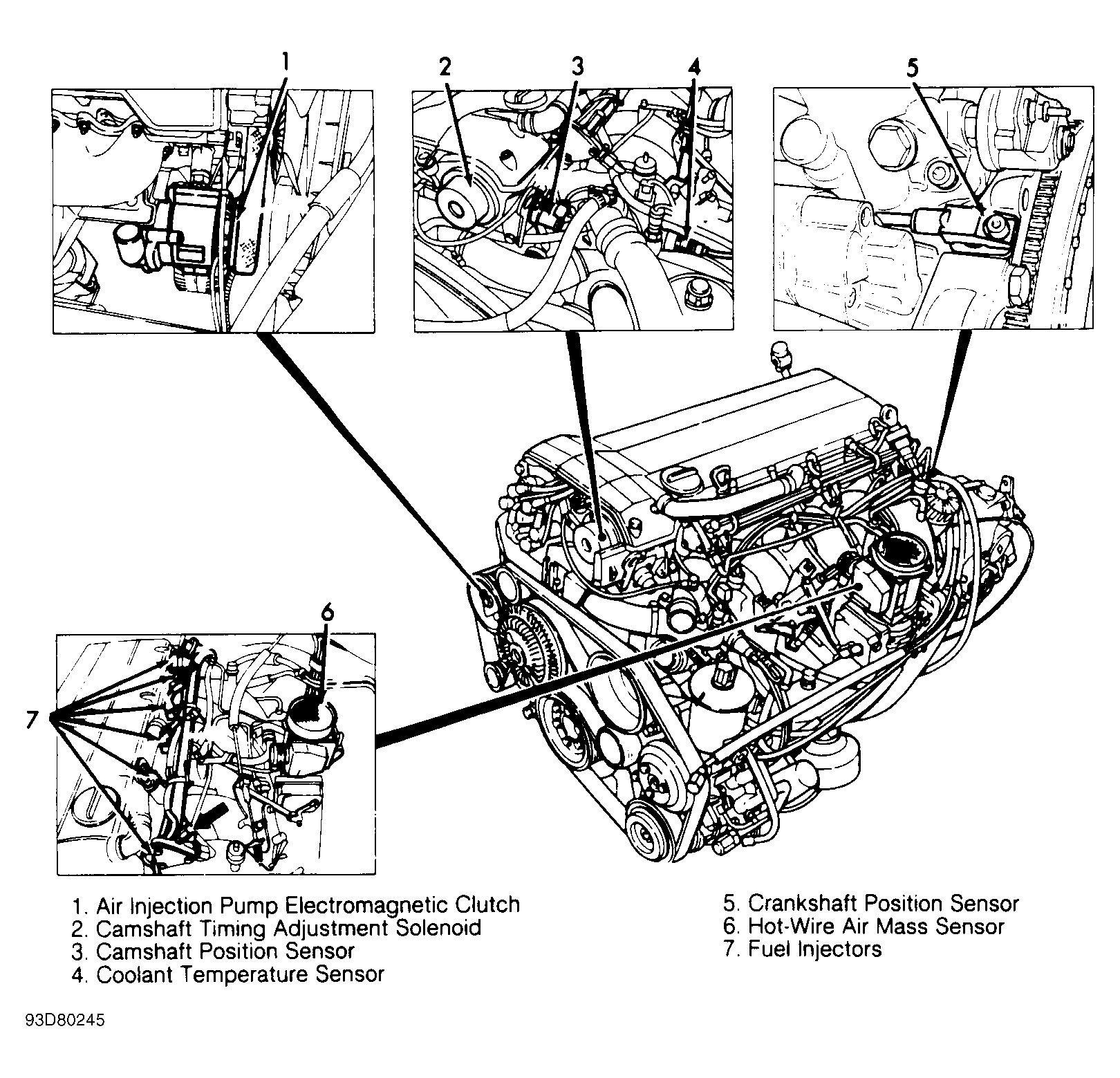

Coolant temperature sensor is a Negative Temperature Coefficient (NTC) type sensor. As sensor temperature increases, resistance decreases. Coolant temperature sensor converts engine coolant temperature to a voltage signal. The LH control unit uses engine coolant temperature to control fuel injection duration. See Figure .
