Floating Caliper Front Axle

WARNING: This page is about a different car, the 1992 Mercedes-Benz 300E. However, it is still accessible from the selected car via links, so may be relevant.

Clean sliding pins and coat with special grease included in brake kit during assembly.

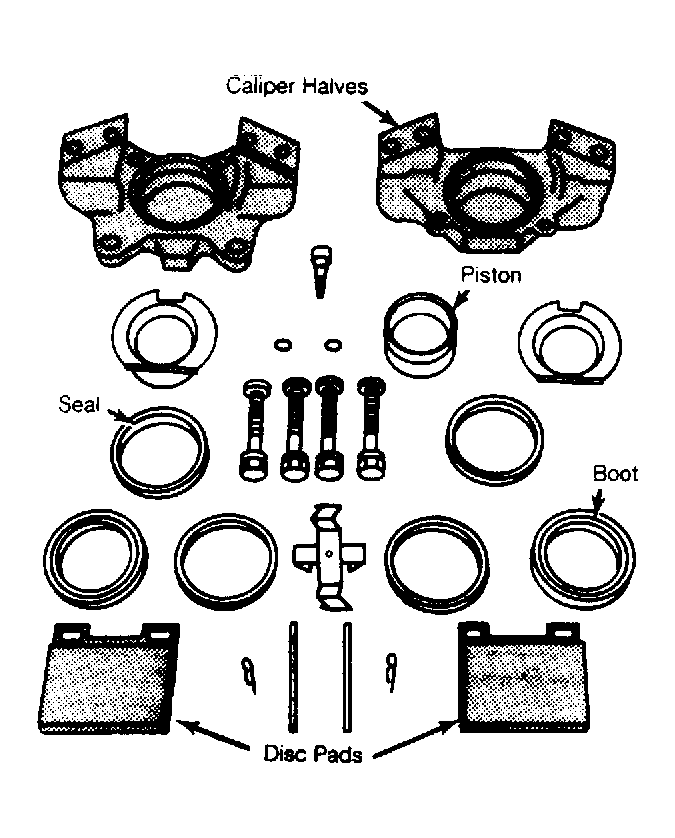

Fig 1: Disassembled View Of Dual Piston Caliper

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
