Wiring Diagrams

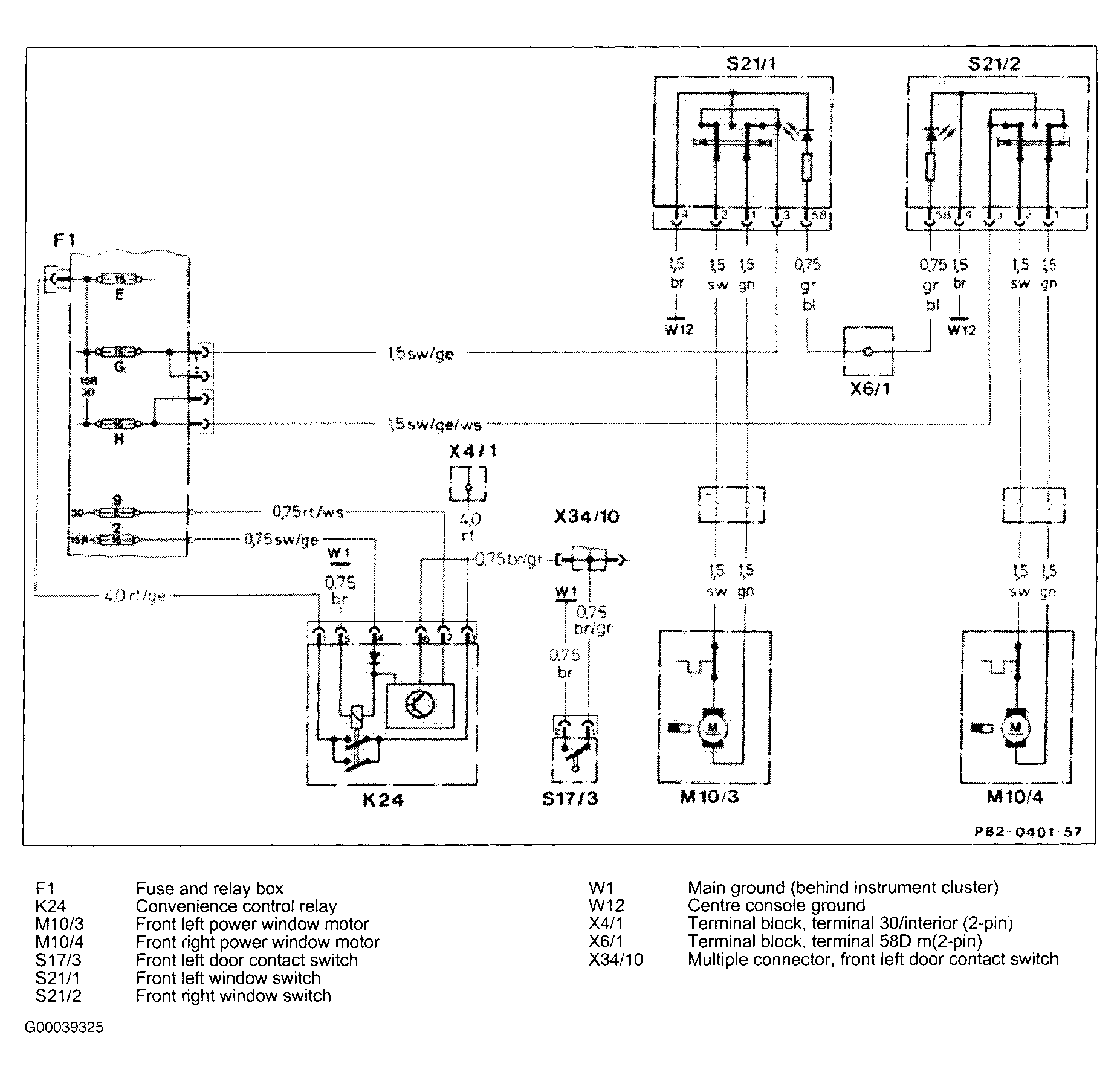

Fig 1: 2-Power Window System Wiring Diagram (1990 To 1993)
G00039325Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 2: 4-Power Window System Wiring Diagram (1990 To 1993)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig 3: 4-Power Window System Wiring Diagram (1994 To 1995)
